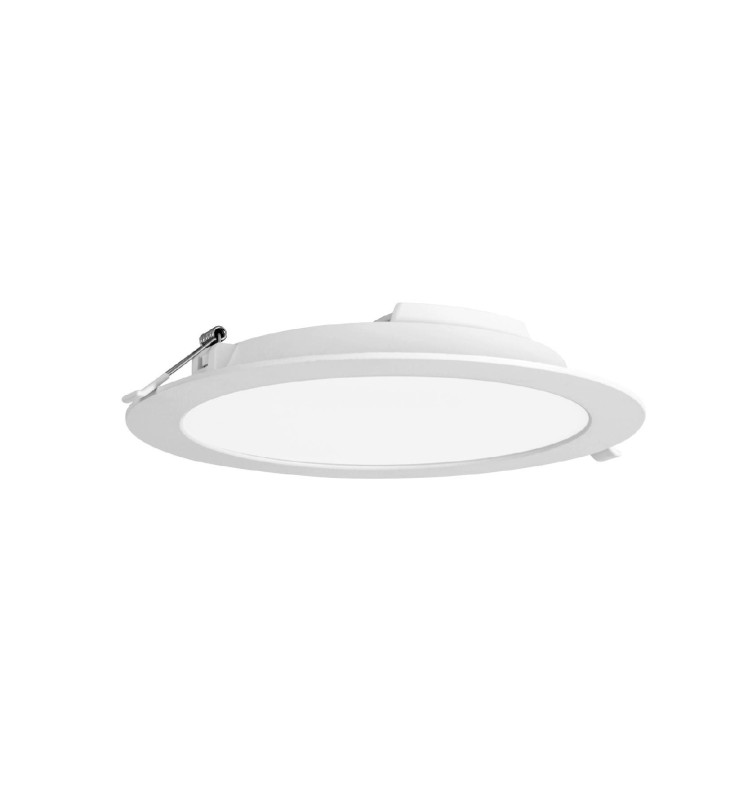

LEKO-12W-3CCT-IP44-WHITE

Data sheet

IP

IP20

IRC

>80

Dimmable

Non

IK

IK08

Energy efficiency class

E

Warranty (years)

2

Total power (W)

12

Electric class

II

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

110

Luminous flux (lm)

1100, 1150, 1200

Color temperature

4000K, 3000K, 6000K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Width (mm)

235.5

Height (mm)

39

Weight (kg)

0

Min. recessed diameter (mm)

145

Max. recessed diameter (mm)

155

Recessed diameter

147, 148, 149, 150, 151, 152, 153, 154, 155, 145, 146

Product color

White

Use temperature range

-20°... +45°C

Connection type

Box with fast connector (L-PE-N)

IP (value)

20

Body materials

PC

Diffuser materials

PC

Life span duration

L70 à 25° : 20 000 h

Cable length

30 cm

Recoverable

Non recouvrable

Network frequency

50Hz

Initial SDCM

SDCM< 6
