TF128-DOWNLIGHT 3CCT SEMI RECESSEDSURFACE MOUNTED 18W SENSOR-IP44
  • TF128-DOWNLIGHT 3CCT SEMI RECESSEDSURFACE MOUNTED 18W SENSOR-IP44
  • TF128-DOWNLIGHT 3CCT SEMI RECESSEDSURFACE MOUNTED 18W SENSOR-IP44
  • TF128-DOWNLIGHT 3CCT SEMI RECESSEDSURFACE MOUNTED 18W SENSOR-IP44

TF128-DOWNLIGHT 3CCT SEMI RECESSEDSURFACE MOUNTED 18W SENSOR-IP44

BL02182004

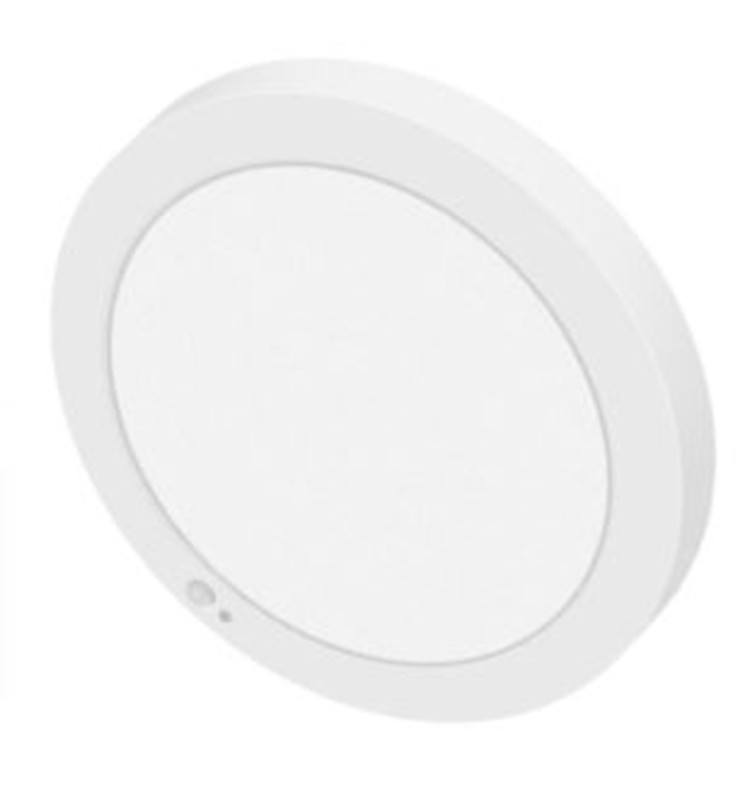

Downlight with 3 temperature colors. Can be installed both surface-mounted and recessed using the included accessories. Recessing adjustable from 55 to 175 mm! With IR (infra-red) presence detector and safety cable.
BL02182004
BE-LED

Data sheet

Yes
IP
IP44
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
F
Warranty (years)
3
Total power (W)
18
Electric class
II
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
1550, 1300, 1450
Color temperature
4000K, 3000K, 6500K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
1135
Height (mm)
22
Weight (kg)
0.5
Min. recessed diameter (mm)
55
Max. recessed diameter (mm)
175
Recessed diameter
72, 106, 146, 55, 122, 162, 90, 130, 73, 107, 147, 56, 123, 163, 91, 131, 74, 108, 148, 57, 124, 164, 92, 132, 75, 109, 149, 58, 125, 165, 93, 133, 76, 110, 150, 59, 126, 166, 94, 134, 135, 68, 111, 151, 61, 127, 167, 95, 136, 69, 112, 152, 62, 128, 168, 96, 137, 77, 113, 153, 63, 129, 169, 97, 138, 78, 114, 154, 64, 170, 98, 99, 139, 79, 115, 155, 65, 171, 100, 140, 80, 116, 156, 66, 172, 101, 141, 81, 117, 157, 67, 173, 102, 142, 82, 118, 158, 86, 174, 103, 143, 83, 119, 159, 87, 175, 104, 144, 84, 120, 160, 88, 70, 71, 105, 145, 85, 121, 161, 89, 60
Product color
White
Use temperature range
-20°... +45°C
Connection type
Fil à connecter
IP (value)
44
Body materials
PC
Diffuser materials
PC
Life span duration
L70 à 25° : 30 000 h
Cable length
30 cm
Detector
Infra rouge
Recessed depth under BA13 (mm)
20
Recoverable
Non recouvrable
Network frequency
50Hz
Initial SDCM
SDCM< 6
