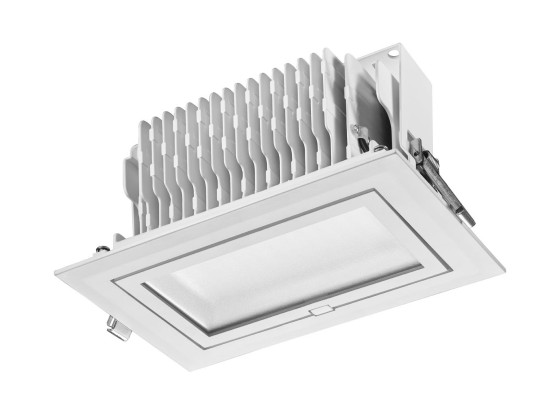

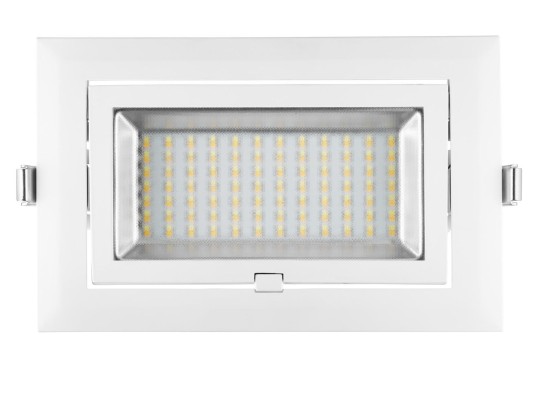

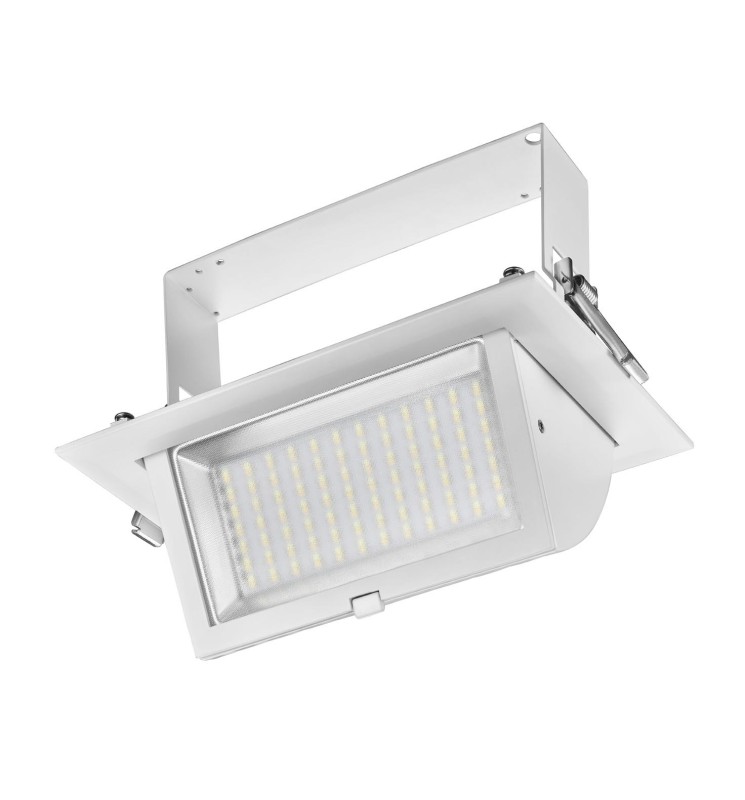

WINDOW 40W-3CCT-BL
BL02402010

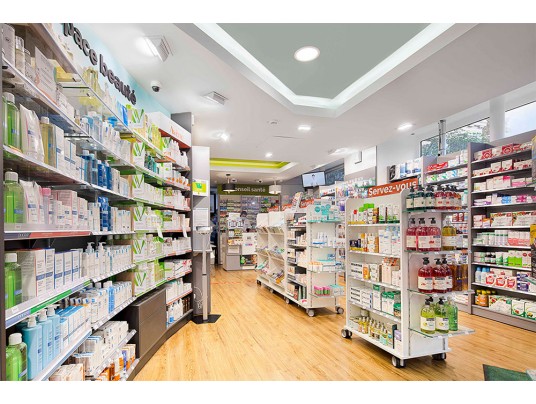

Adjustable high-power recessed light, ideal for shop windows and for showcasing products on shelves. Adjustable color temperature on the product to adapt perfectly to the desired atmosphere.
BL02402010
Data sheet
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 40
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 4200, 3800
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Length (mm)
- 156
- Width (mm)
- 246
- Height (mm)
- 144
- Weight (kg)
- 2.26
- Min. recessed diameter (mm)
- 130
- Max. recessed diameter (mm)
- 225
- Recessed diameter
- 131, 179, 147, 195, 163, 211, 132, 180, 148, 196, 164, 212, 213, 133, 181, 149, 197, 165, 214, 134, 182, 150, 198, 166, 215, 135, 183, 151, 199, 167, 216, 136, 184, 152, 200, 168, 217, 137, 185, 153, 201, 169, 218, 138, 186, 154, 202, 170, 171, 219, 139, 187, 155, 203, 172, 220, 140, 188, 156, 204, 173, 221, 141, 189, 157, 205, 174, 222, 142, 190, 158, 206, 175, 223, 143, 191, 159, 207, 176, 224, 144, 192, 160, 208, 177, 225, 145, 193, 161, 209, 130, 178, 146, 194, 162, 210
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- Verre trempé
- Life span duration
- L80 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 150
- Recoverable
- Non recouvrable
- Dimmable values
- Dali
- Tilt angle
- 90
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
Adjustable high-power recessed light, ideal for shop windows and for showcasing products on shelves. Adjustable color temperature on the product to adapt perfectly to the desired atmosphere.
