TF071-SLIM ECO-18W-IP20-4000k
BL02182001

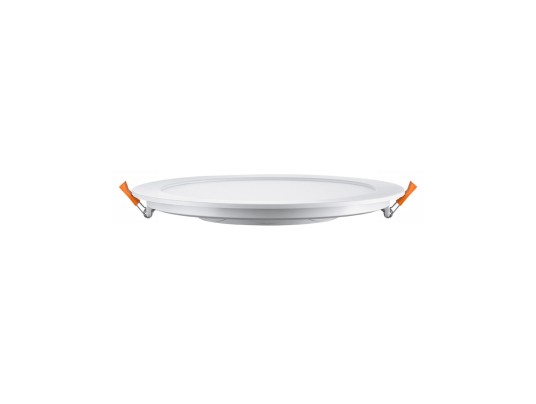

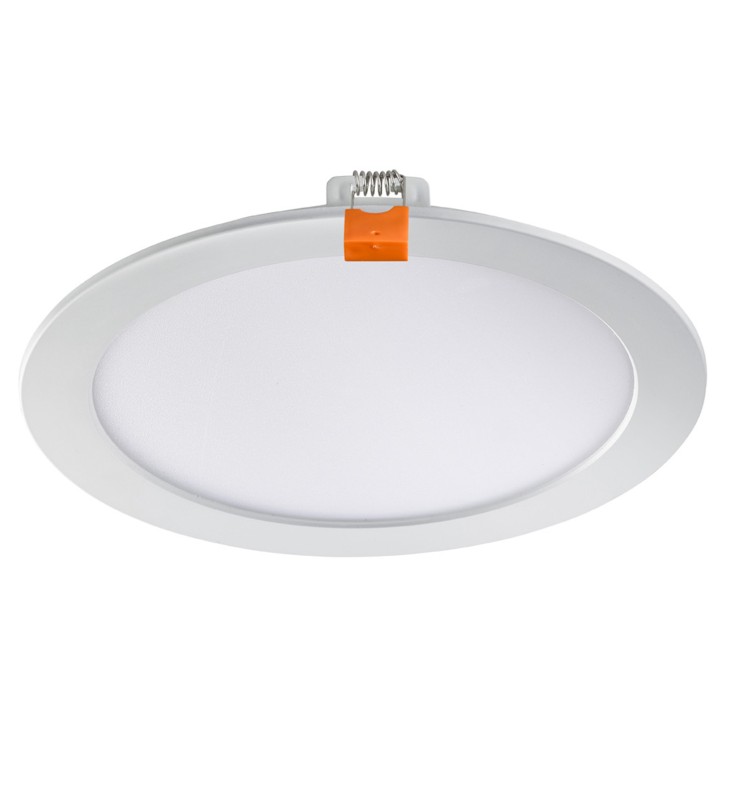

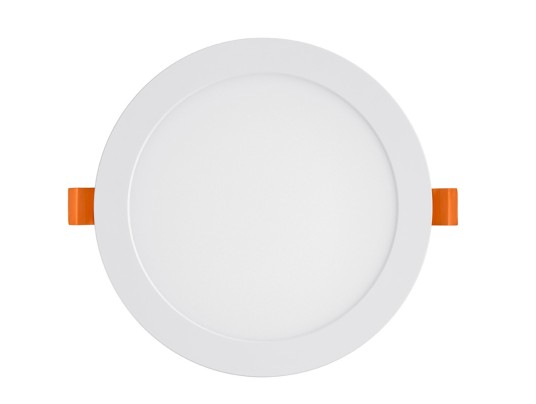

Low profile, economical downlight. Ideal for circulation and common areas
Economical flat downlight with direct opal diffuser 230 Volts. economical low thickness. Ideal for circulation and common areas
Economical flat downlight with direct opal diffuser 230 Volts. economical low thickness. Ideal for circulation and common areas
BL02182001
Data sheet
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- F
- Warranty (years)
- 2
- Total power (W)
- 18
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 1620
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 117
- Length (mm)
- 223
- Width (mm)
- 223
- Height (mm)
- 24
- Weight (kg)
- 0.36
- Min. recessed diameter (mm)
- 205
- Max. recessed diameter (mm)
- 215
- Recessed diameter
- 206, 207, 208, 209, 210, 211, 212, 213, 214, 215, 205
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-PE-N)
- IP (value)
- 20
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 25 000 h
- Cable length
- 30 cm
- Recessed depth under BA13 (mm)
- 30
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 6
