- Rupture de stock
CAMUS PRO 20W-IP44-3000K-WHITE
TR02124413B

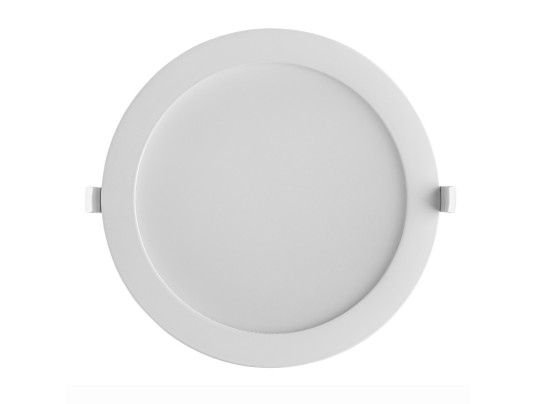

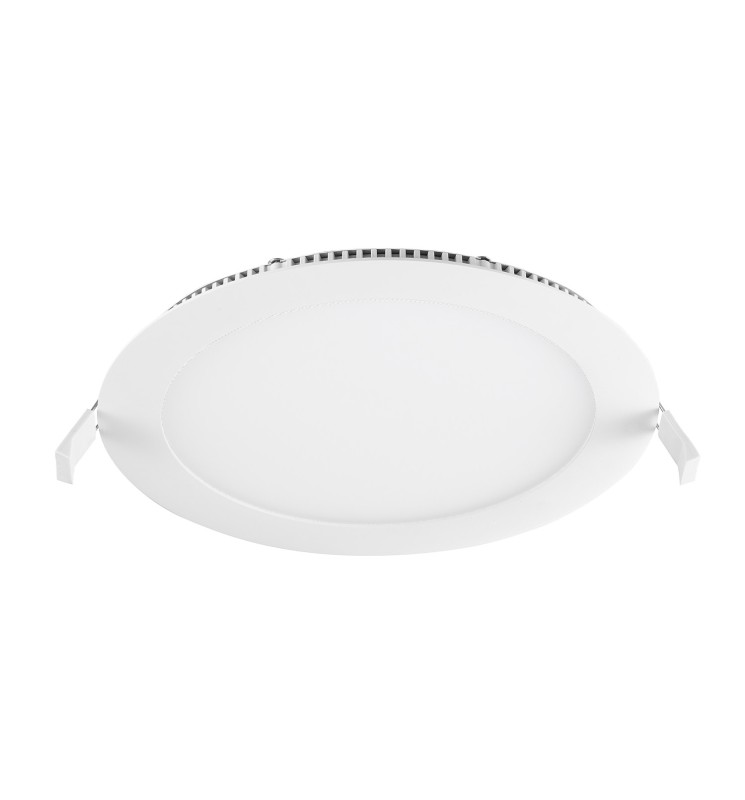

Round white aluminum downlight. Very thin and with wide light distribution, it is ideal for tertiary applications. Dali Push-Dim option with suitable driver
TR02124413B
Data sheet
- Yes
- Yes
- IP
- IP44 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK07
- Energy efficiency class
- D
- Warranty (years)
- 3
- Total power (W)
- 20
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 1900
- Color temperature
- 3000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 22
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 13
- Weight (kg)
- 0.52
- Min. recessed diameter (mm)
- 200
- Max. recessed diameter (mm)
- 210
- Recessed diameter
- 205, 206, 207, 208, 209, 210, 200, 201, 202, 203, 204
- Product color
- White
- Use temperature range
- -20°... +40°C
- Connection type
- Fil à connecter
- IP (value)
- 44
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Cable length
- 20 cm
- Recessed depth under BA13 (mm)
- 30
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
