CAMUS PRO 20W-IP44-4000K-WHITE
TR02124412B

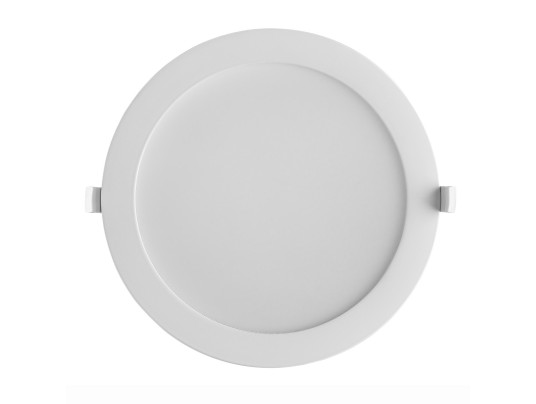

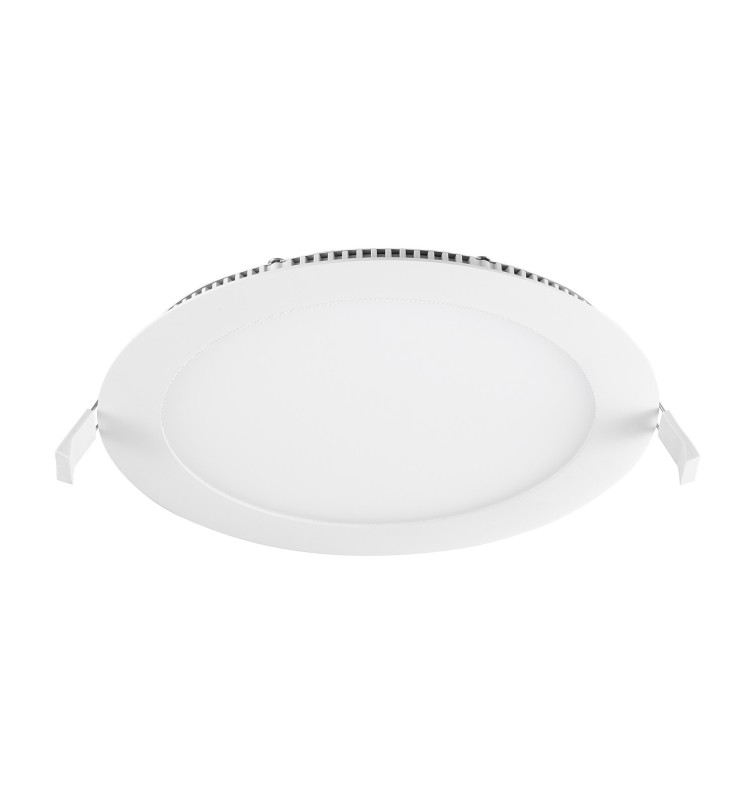

Round white aluminum downlight. Very thin and with wide light distribution, it is ideal for tertiary applications. Dali and Push-Dim option with suitable driver
TR02124412B
Data sheet
- Yes
- Yes
- IP
- IP44 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK07
- Energy efficiency class
- E
- Warranty (years)
- 3
- Total power (W)
- 20
- Electric class
- II with power supply, III
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 2100
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 13
- Weight (kg)
- 0.48
- Min. recessed diameter (mm)
- 200
- Max. recessed diameter (mm)
- 210
- Recessed diameter
- 201, 202, 203, 204, 205, 206, 207, 208, 209, 210, 200
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 44
- Body materials
- Aluminium
- Diffuser materials
- PS
- Life span duration
- L70 à 25° : 50 000 h
- Cable length
- 10 cm
- Recessed depth under BA13 (mm)
- 30
- Recoverable
- Isolant rouleau
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
