VISUAL-18W-IP54-3CCT-BLACK
  • VISUAL-18W-IP54-3CCT-BLACK
  • VISUAL-18W-IP54-3CCT-BLACK

VISUAL-18W-IP54-3CCT-BLACK

BL02185415

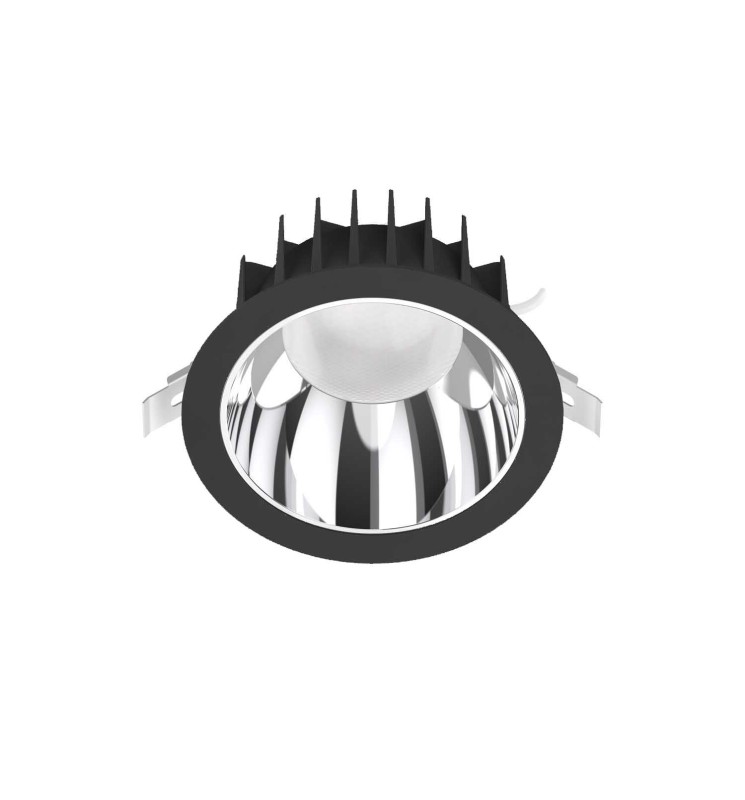

Low-glare LED downlight, 3CCT and IP54, ideal for the service sector: hallway, meeting room. Option in Dali possible
Visual range
BL02185415
BE-LED

Data sheet

Yes
Yes
IP
IP54 facade
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
C
Warranty (years)
5
Total power (W)
18
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
63
Luminous flux (lm)
1650, 1550
Color temperature
4000K, 3000K, 5700K
Safety group (EN62778)
RG1
Unified Glare Rating (UGR)
< 19
Driver included
Non
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
77
Weight (kg)
0.48
Min. recessed diameter (mm)
125
Max. recessed diameter (mm)
135
Recessed diameter
126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 125
Product color
Black
Use temperature range
-25°... +45°C
Connection type
Connector on the product
IP (value)
54
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Recessed depth under BA13 (mm)
80
Recoverable
Non recouvrable
Network frequency
50Hz
Initial SDCM
SDCM< 3
