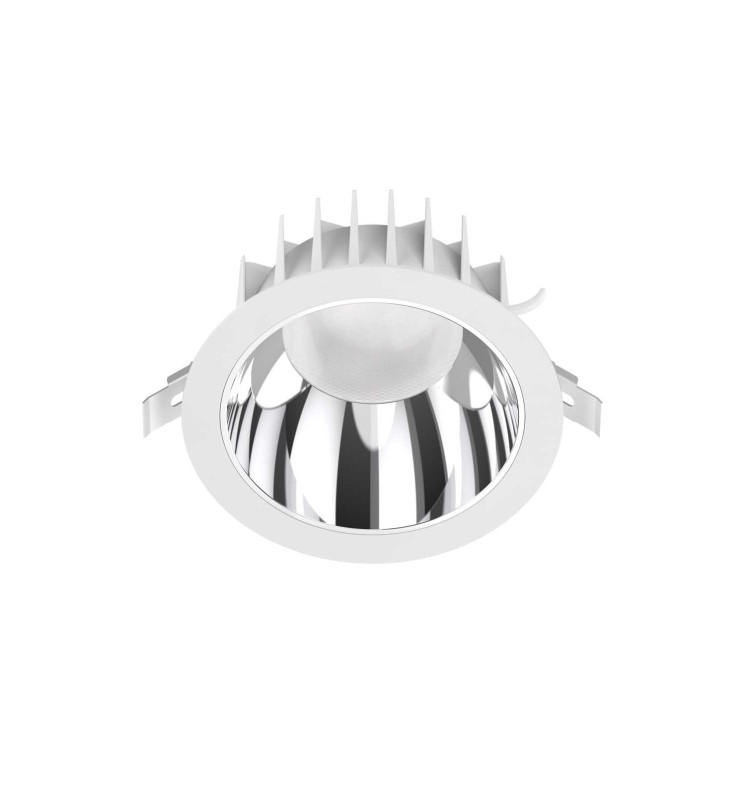

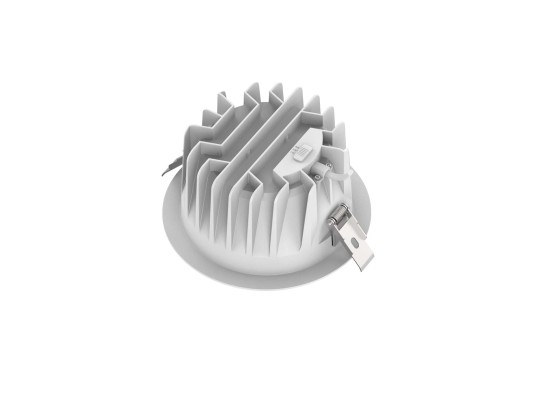

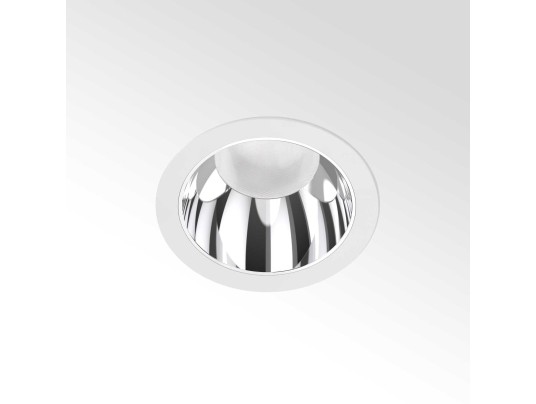

VISUAL DOWNLIGHT-8.75W-3000K-IP54
BL02102096
Low glare led downlight, UGR<19 3000K IP54, ideal for the service sector: corridors, meeting rooms, schools. Option in Dali.
Visual range
Visual range
BL02102096
Data sheet
- Yes
- Yes
- IP
- IP20, IP54 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 9
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 80
- Luminous flux (lm)
- 1000
- Color temperature
- 3000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Non
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 77
- Weight (kg)
- 0.35
- Min. recessed diameter (mm)
- 125
- Max. recessed diameter (mm)
- 135
- Recessed diameter
- 130, 131, 132, 133, 134, 135, 125, 126, 127, 128, 129
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 20, 54
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80B20 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 80
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
Low glare led downlight, UGR<19 3000K IP54, ideal for the service sector: corridors, meeting rooms, schools. Option in Dali.
