BIRDY RECESSED ROUND-15W-TRIAC DIM-3000K-IP40
  • BIRDY RECESSED ROUND-15W-TRIAC DIM-3000K-IP40
  • BIRDY RECESSED ROUND-15W-TRIAC DIM-3000K-IP40
  • BIRDY RECESSED ROUND-15W-TRIAC DIM-3000K-IP40

BIRDY RECESSED ROUND-15W-TRIAC DIM-3000K-IP40

PL01152001

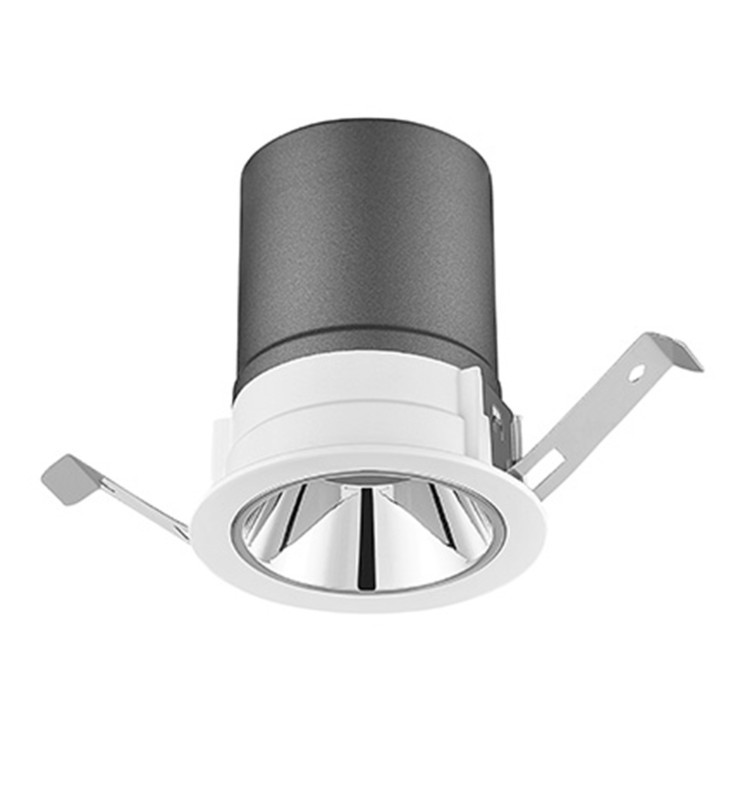

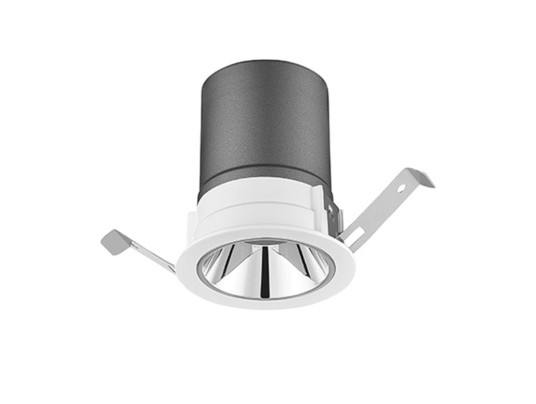

High-end recessed LED spotlight. Equipped with a chrome reflector, ideal for creating cozy atmospheres.

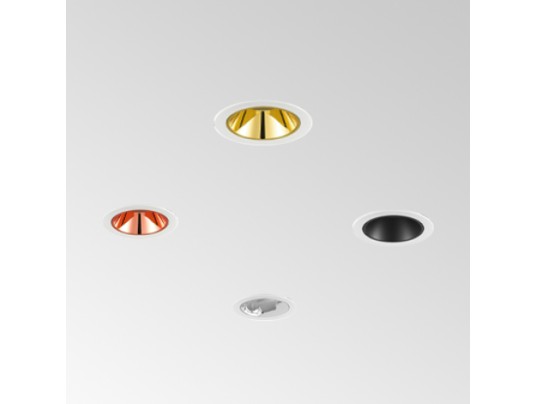

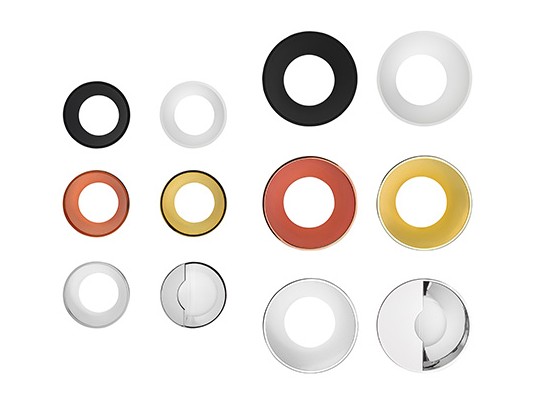

with the possibility of adapting different reflectors (gold, copper, matt black, white) asymmetric reflector is also available! 15w
PL01152001
BE-LED

Data sheet

Yes
Yes
IP
IP40, IP54 facade
IRC
>90
Dimmable
Yes
IK
IK06
Energy efficiency class
F
Warranty (years)
5
Total power (W)
15
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
36
Luminous flux (lm)
1000
Color temperature
3000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
COB
Tiltable
Non
Height (mm)
92
Weight (kg)
0.36
Min. recessed diameter (mm)
80
Max. recessed diameter (mm)
80
Recessed diameter
80
Product color
White
Use temperature range
-20°... +40°C
Connection type
Fil à connecter
IP (value)
40, 54
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Cable length
10 cm
Recessed depth under BA13 (mm)
82
Dimmable values
Triac
Network frequency
50Hz
Initial SDCM
SDCM< 4
