- Rupture de stock
LINE 11W-3000K-36-DIM-WHITE
BL02112001

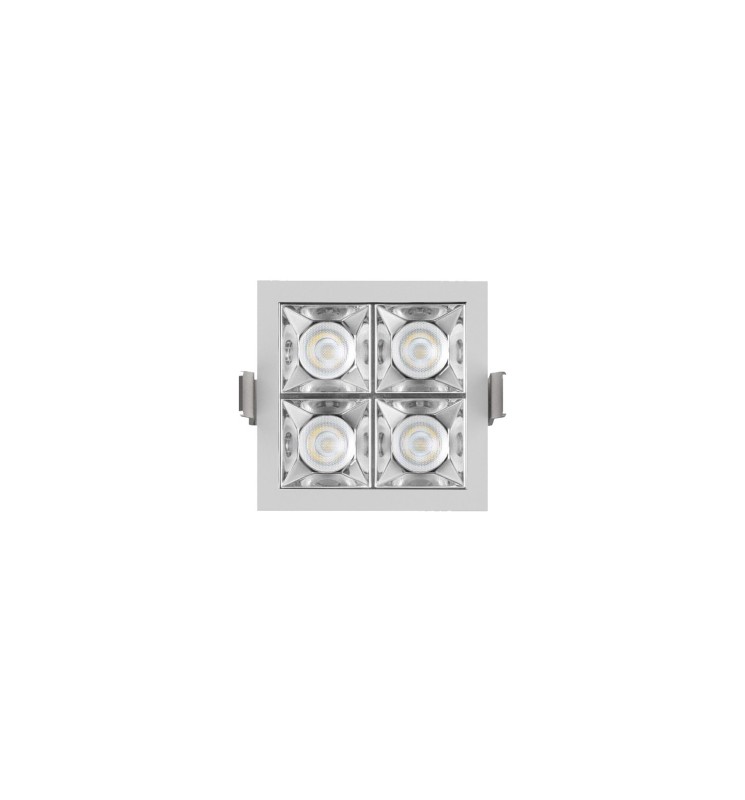

Low luminance white square led downlight. Very contemporary and architectural, it is triac dimmable. 11w UGR<19
LED ceiling light, architectural recessed, dimmable triac, low glare, appreciated by decorators for its contemporary design.
LED ceiling light, architectural recessed, dimmable triac, low glare, appreciated by decorators for its contemporary design.
BL02112001
Data sheet
- Yes
- Yes
- IP
- IP40
- IRC
- >90
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 11
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 36
- Luminous flux (lm)
- 580
- Color temperature
- 3000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Tiltable
- Non
- Length (mm)
- 75
- Width (mm)
- 75
- Height (mm)
- 51
- Weight (kg)
- 0.28
- Min. recessed diameter (mm)
- 67
- Max. recessed diameter (mm)
- 67
- Recessed diameter
- 67
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Connector on the product
- IP (value)
- 40
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 60
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 50
- Max. lamp per B16A circuit breaker
- 60
- Max. lamp per C16A circuit breaker
- 70
Low luminance white square led downlight. Very contemporary and architectural, it is triac dimmable. 11w UGR<19
LED ceiling light, architectural recessed, dimmable triac, low glare, appreciated by decorators for its contemporary design.
LED ceiling light, architectural recessed, dimmable triac, low glare, appreciated by decorators for its contemporary design.
