SPOT LED LOW GLARE.7W-3CCT-IP54-30-DIM-WHITE
BL01075401

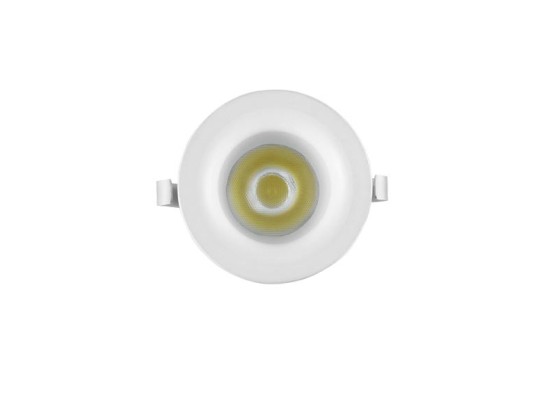

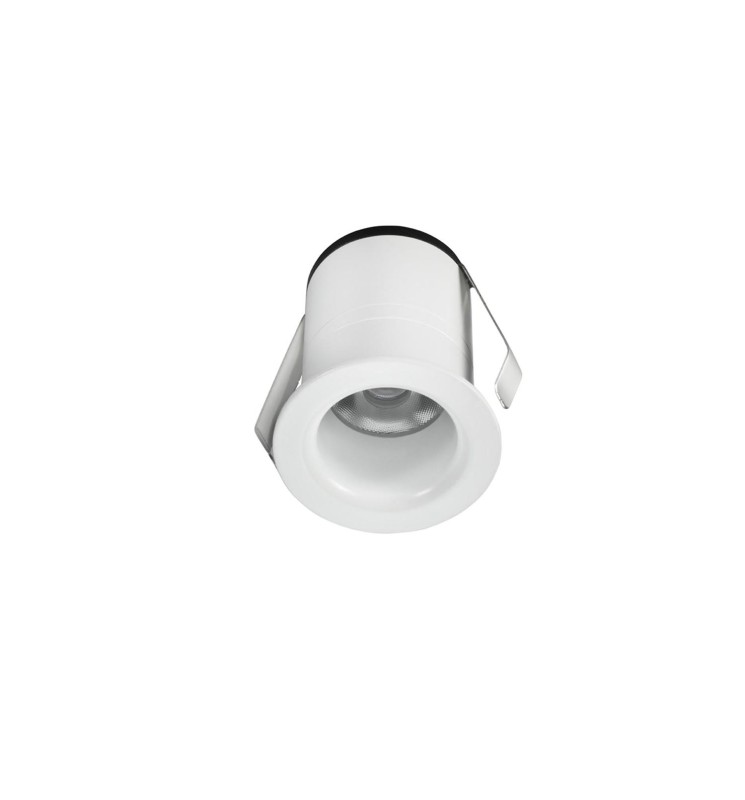

Small diameter, low luminance white LED spotlight. Ideal for specific enhancement or decoration.
BL01075401
Data sheet
- Yes
- IP
- IP54 facade
- IRC
- >80
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 3
- Total power (W)
- 7
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 30
- Luminous flux (lm)
- 330, 400, 380

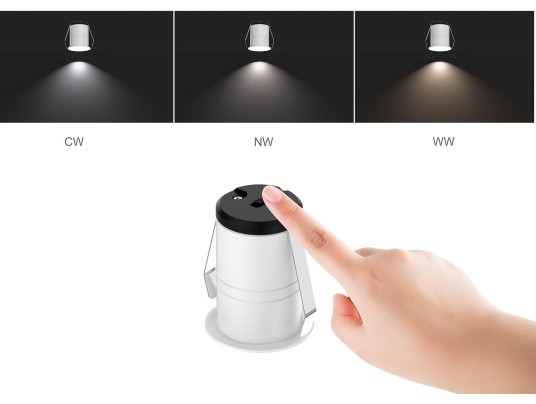

- Color temperature
- 5700K, 4000K, 3000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Non
- Height (mm)
- 63
- Weight (kg)
- 0.18
- Min. recessed diameter (mm)
- 50
- Max. recessed diameter (mm)
- 50
- Recessed diameter
- 50
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Connector on the product
- IP (value)
- 54
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 53
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
Small diameter, low luminance white LED spotlight. Ideal for specific enhancement or decoration.
