TF077-SPOT 7W-IP65-3000k-BBC
BL01076501

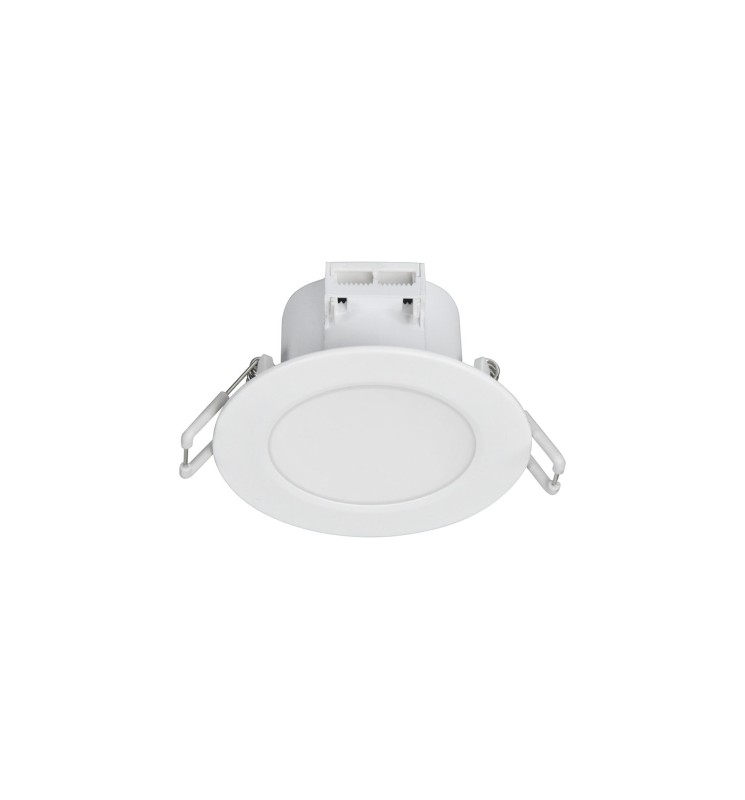

Economic led spotlight with opal diffuser. IP65 and BBC it will respond to all tertiary or collective residential applications
BL01076501
Data sheet
- IP
- IP65 facade, IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- E
- Warranty (years)
- 2
- Total power (W)
- 7
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 100
- Luminous flux (lm)
- 660
- Color temperature
- 3000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Non
- Height (mm)
- 47
- Weight (kg)
- 0.08
- Min. recessed diameter (mm)
- 68
- Max. recessed diameter (mm)
- 74
- Recessed diameter
- 73, 74, 68, 69, 70, 71, 72
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-PE-N)
- IP (value)
- 20, 65
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 25 000 h
- Recessed depth under BA13 (mm)
- 36
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 6
Economic led spotlight with opal diffuser. IP65 and BBC it will respond to all tertiary or collective residential applications
