EYE-RECESSED-WALL-3W-4000K-IP20
BL16032002

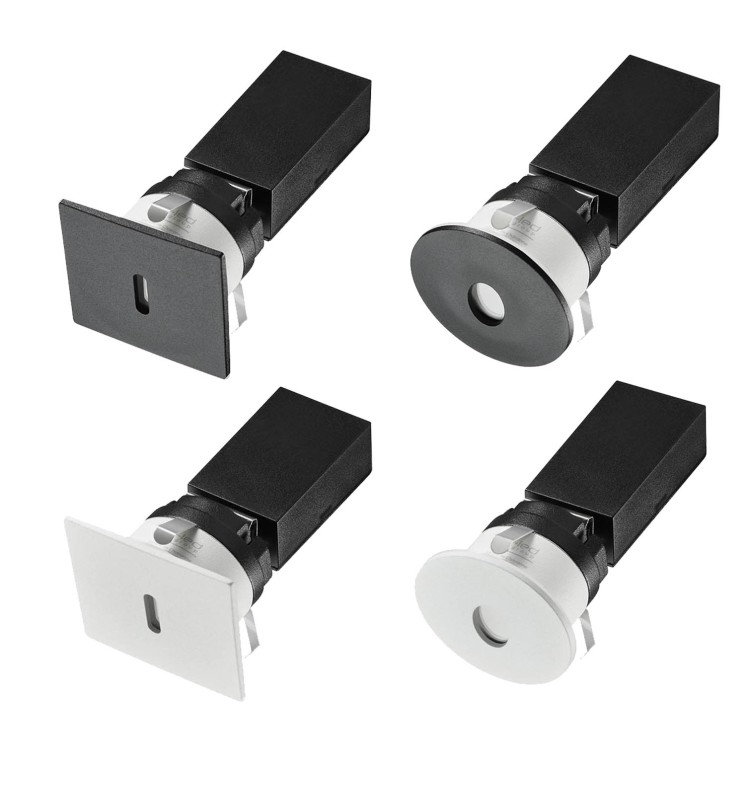

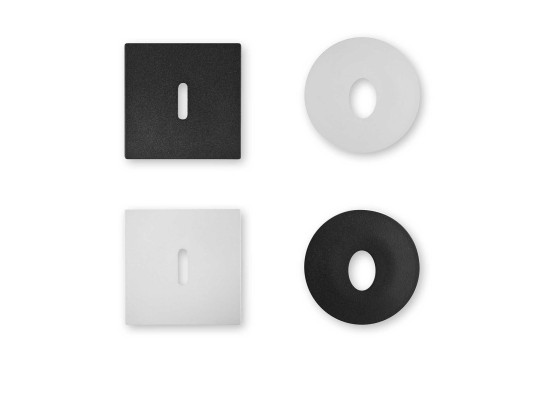

Eye LED module for recessing into walls indoors. Allows you to mark out and highlight interior or sheltered passageways: stairs, corridors. Finishing accessory to be ordered separately, round or square, white or black.
BL16032002
Data sheet
- IP
- IP54 facade
- IRC
- >90
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- G
- Warranty (years)
- 5
- Total power (W)
- 3
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 80
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Non
- Height (mm)
- 35
- Weight (kg)
- 0.1
- Min. recessed diameter (mm)
- 43
- Max. recessed diameter (mm)
- 46
- Recessed diameter
- 43, 44, 45, 46
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 54
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 30
- Dimmable values
- Triac
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
