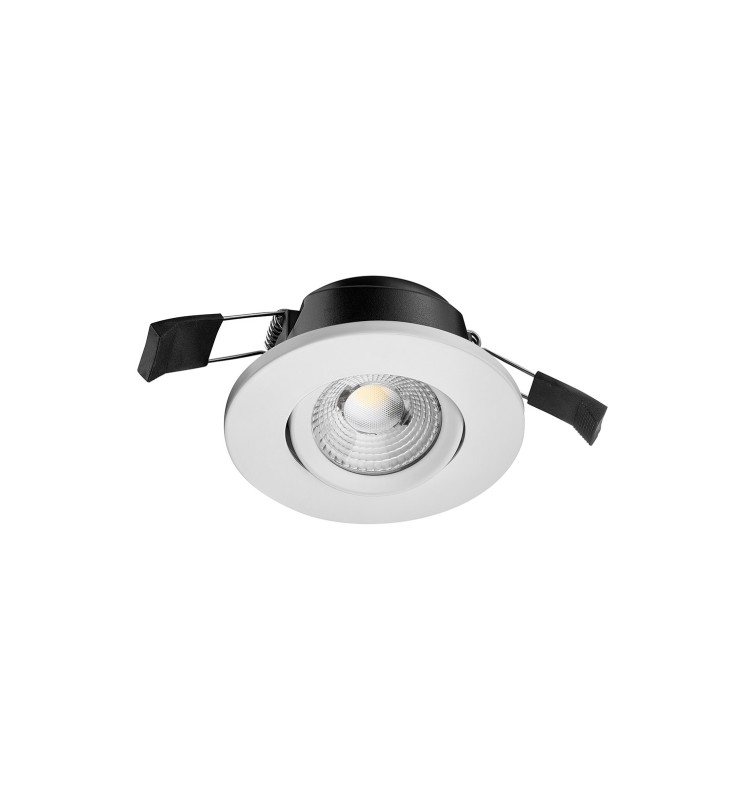

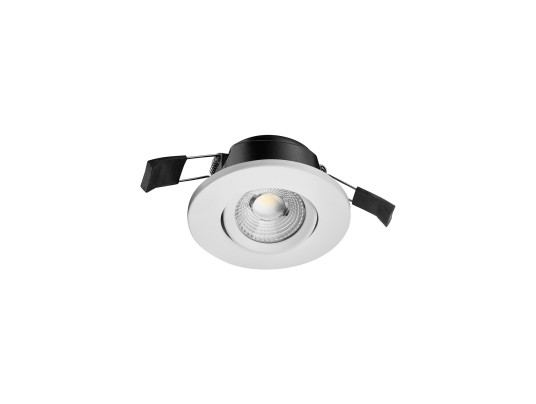

STORM ISO 4 CTT-6.5W-IP65-BBC-WHITE
BL01106550

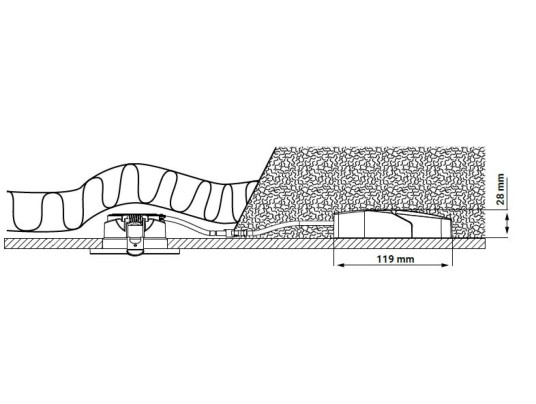

STORM ISO in aluminium, recessed compatible with BBC standard and adjustable. Coverable with roll insulation or blown insulation.
BL01106550
Data sheet
- IP
- IP65 facade
- IRC
- >80
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 6.5
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 700, 650, 625
- Color temperature
- 4000K, 3000K, 2700K, 6000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19

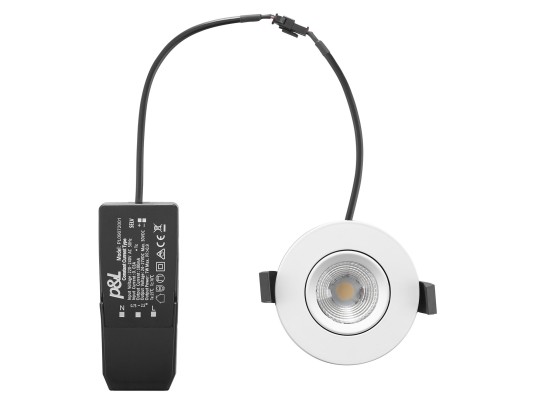

- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Height (mm)
- 40
- Weight (kg)
- 0.24
- Min. recessed diameter (mm)
- 68
- Max. recessed diameter (mm)
- 74
- Recessed diameter
- 70, 71, 72, 73, 74, 68, 69
- Product color
- White
- Use temperature range
- -20°... +45°C

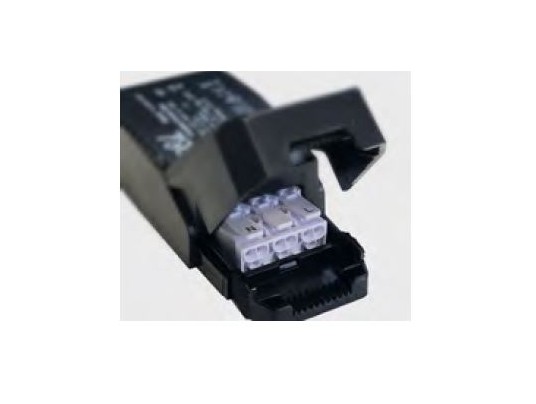

- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 30
- Recoverable
- Tout isolant
- Dimmable values
- Triac
- Tilt angle
- 30
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
- Max. lamp per B10A circuit breaker
- 25
- Max. lamp per B16A circuit breaker
- 30
- Max. lamp per C16A circuit breaker
- 40
STORM ISO in aluminium, recessed compatible with BBC standard and adjustable. Coverable with roll insulation or blown insulation.
