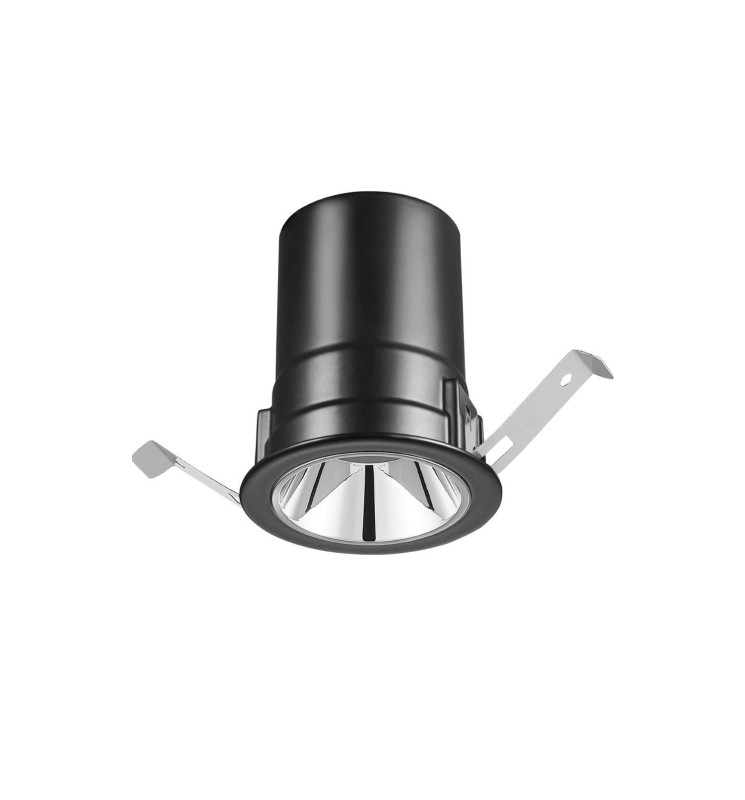

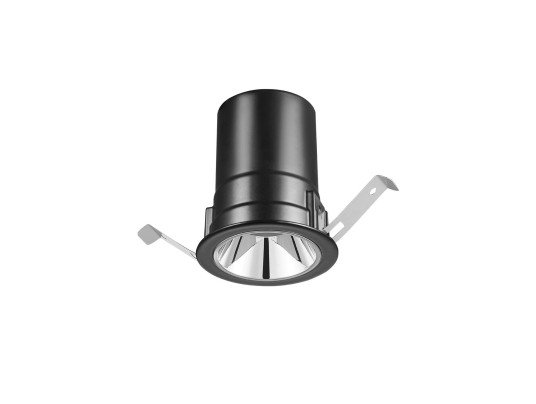

BIRDY RECESSED ROUND-15W-TRIAC DIM-3000K-IP40 BLACK
PL01152003
High-end recessed LED spotlight. Equipped with a chrome reflector, ideal for creating cozy atmospheres.
with the possibility of adapting different reflectors (gold, copper, matt black, white) asymmetric reflector is also available! 15w
with the possibility of adapting different reflectors (gold, copper, matt black, white) asymmetric reflector is also available! 15w
PL01152003
Data sheet
- Yes
- Yes
- IP
- IP40, IP54 facade
- IRC
- >90
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- F
- Warranty (years)
- 5
- Total power (W)
- 15
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 36
- Luminous flux (lm)
- 1000
- Color temperature
- 3000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Non
- Height (mm)
- 92
- Weight (kg)
- 0.38
- Min. recessed diameter (mm)
- 80
- Max. recessed diameter (mm)
- 80
- Recessed diameter
- 80
- Product color
- Black
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 40, 54
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Cable length
- 10 cm
- Recessed depth under BA13 (mm)
- 82
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
