DETECTO SPOT 7W-3CCT-IP65
BL01066560

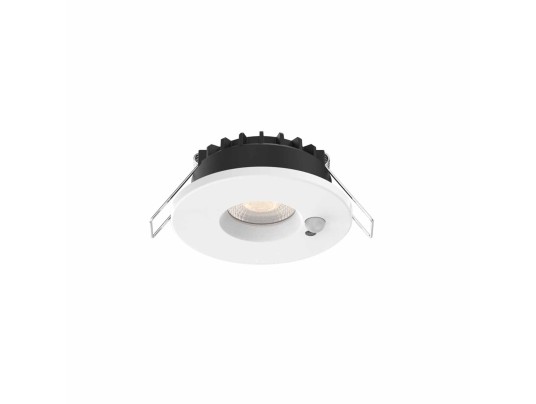

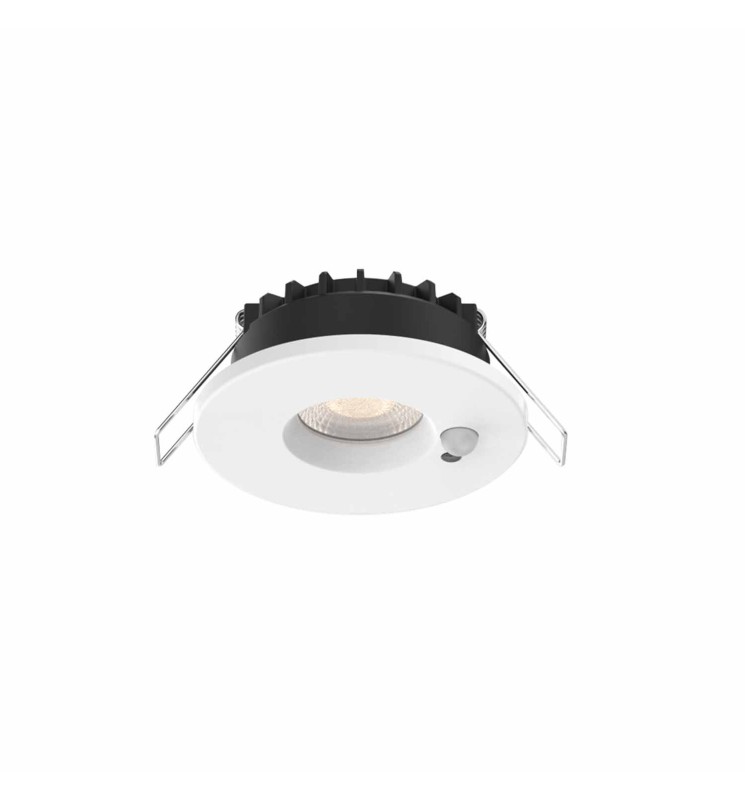

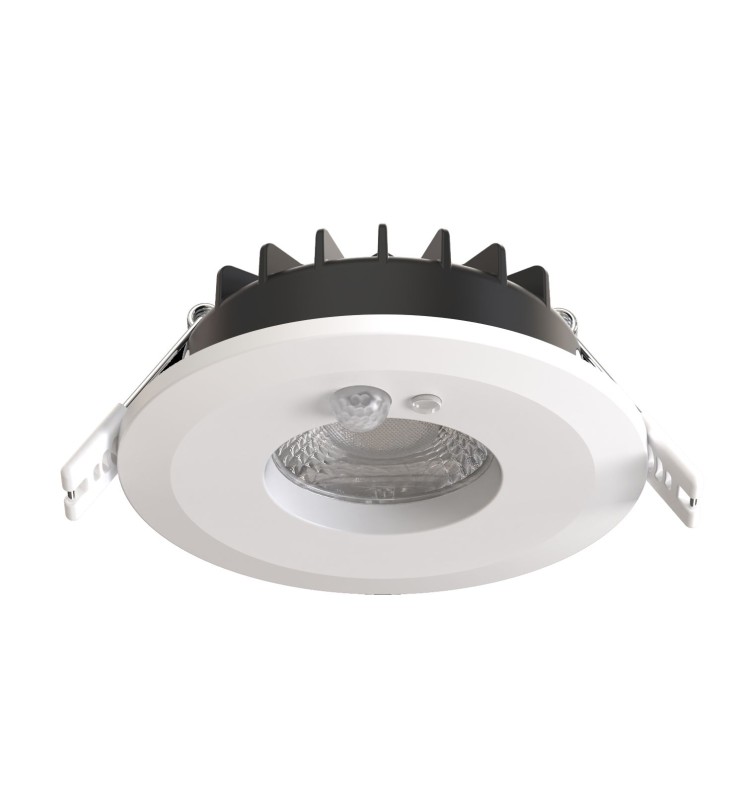

Spotlight with integrated IR detector. Allows you to save energy and light only when you need it!
Ideal for bathrooms, pantry, entrance, laundry room... IP65 facade, BBC. Admitted in volume 1.
Ideal for bathrooms, pantry, entrance, laundry room... IP65 facade, BBC. Admitted in volume 1.
BL01066560
Data sheet
- 88
- Yes
- IP
- IP65 facade, IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK07
- Energy efficiency class
- F
- Warranty (years)
- 5
- Total power (W)
- 7
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 600, 720, 670
- Color temperature
- 4000K, 3000K, 2700K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 35
- Weight (kg)
- 0.2
- Min. recessed diameter (mm)
- 68
- Max. recessed diameter (mm)
- 74
- Recessed diameter
- 70, 71, 72, 73, 74, 68, 69
- Product color
- White
- Use temperature range
- -25°... +45°C

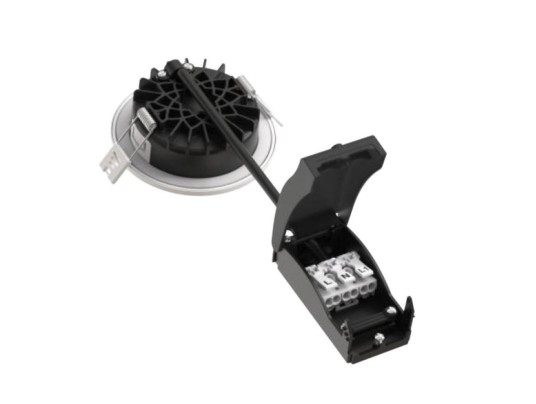

- Connection type
- Box with fast connector (L-N-PE)
- IP (value)
- 20, 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Detector
- Infra rouge
- Recessed depth under BA13 (mm)
- 45
- Recoverable
- Isolant rouleau
- Dimmable values
- Triac
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
Spotlight with integrated IR detector. Allows you to save energy and light only when you need it!
Ideal for bathrooms, pantry, entrance, laundry room... IP65 facade, BBC. Admitted in volume 1.
Ideal for bathrooms, pantry, entrance, laundry room... IP65 facade, BBC. Admitted in volume 1.
