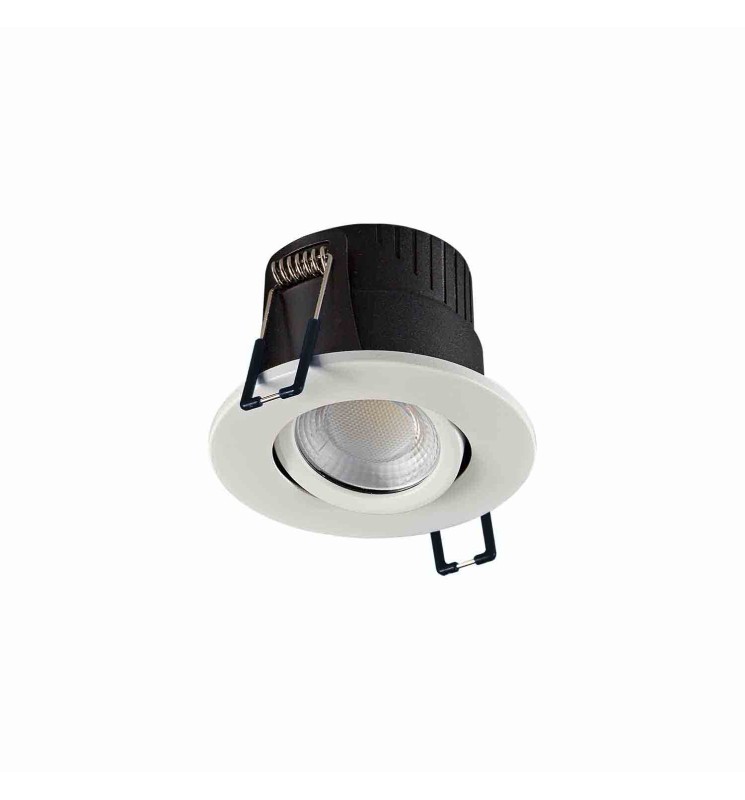

FIRST-SPOT-5W-BBC-4CCT-DIM-WHITE
BL000044
4CCT spotlight, BBC, adjustable, interchangeable collar. Direct 230V and triac dimmable. Easy to install and economical. Coverable with any insulation.
BL000044
Data sheet
- Yes
- IP
- IP65 facade, IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK08
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 5
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 5800
- Luminous flux (lm)
- 500, 590, 530, 570
- Color temperature
- 6000K, 4000K, 3000K, 2700K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Height (mm)
- 59
- Weight (kg)
- 0.22
- Min. recessed diameter (mm)
- 68
- Max. recessed diameter (mm)
- 76
- Recessed diameter
- 76, 68, 69, 70, 71, 72, 73, 74, 75
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 20, 65
- Body materials
- Aluminium, PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 50
- Recoverable
- Tout isolant
- Dimmable values
- Triac
- Tilt angle
- 25
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
4CCT spotlight, BBC, adjustable, interchangeable collar. Direct 230V and triac dimmable. Easy to install and economical. Coverable with any insulation.
