HIBAY CCT-150W-110W-75W-40W-3CCT-WHITE
BL111506510

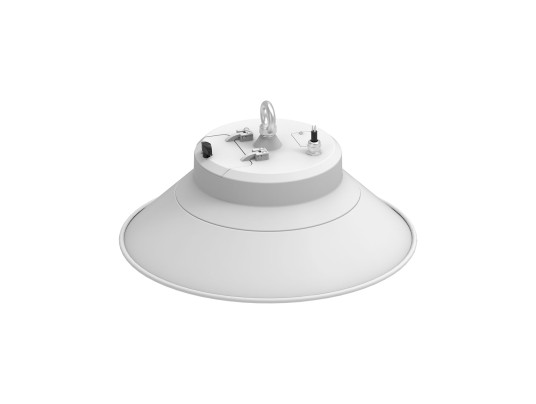

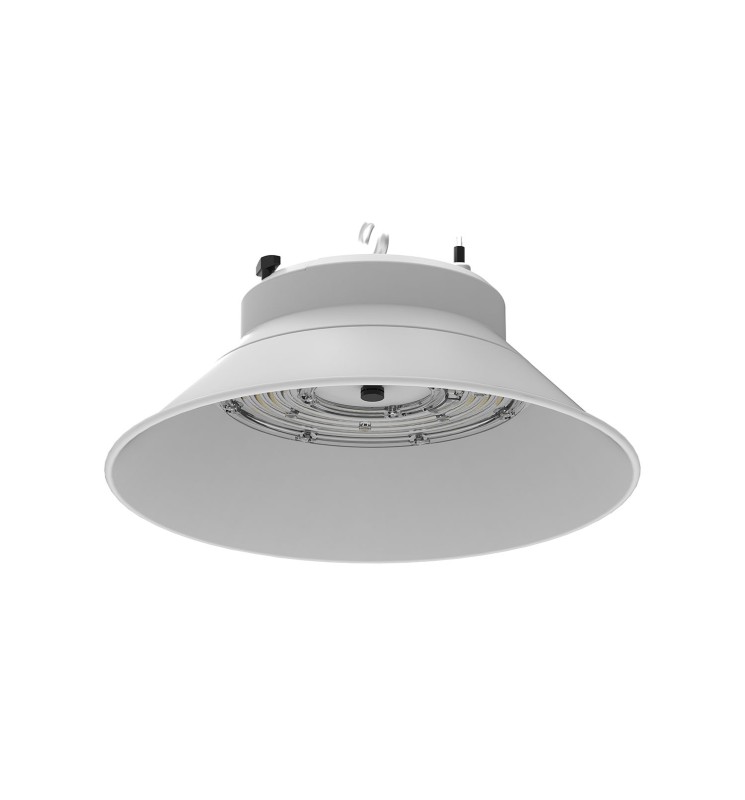

Industrial led frame, 3 temperature colors (3000K, 4000K and 5500K) and 4 powers (150W, 110W, 75W, 40W). 130 lm / Watt!
BL111506510
Data sheet
- Yes
- IP
- IP65
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 40 / 75 / 110 / 150
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 20000
- Color temperature
- 4000K, 3000K, 5000K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 200
- Weight (kg)
- 2.32
- Product color
- White
- Use temperature range
- -25°... +45°C

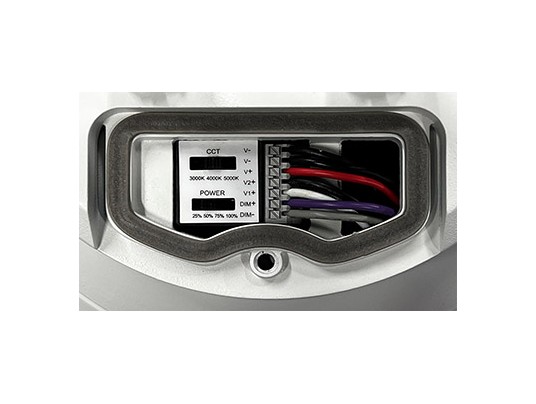

- Connection type
- Fil à connecter
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 20 cm
- Recoverable
- Non concerné
- Dimmable values
- 1-10V
- Tilt angle
- 90
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 5
- Max. lamp per B16A circuit breaker
- 7
- Max. lamp per C16A circuit breaker
- 10
