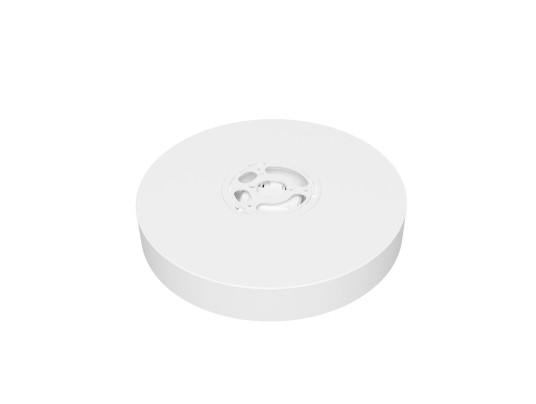

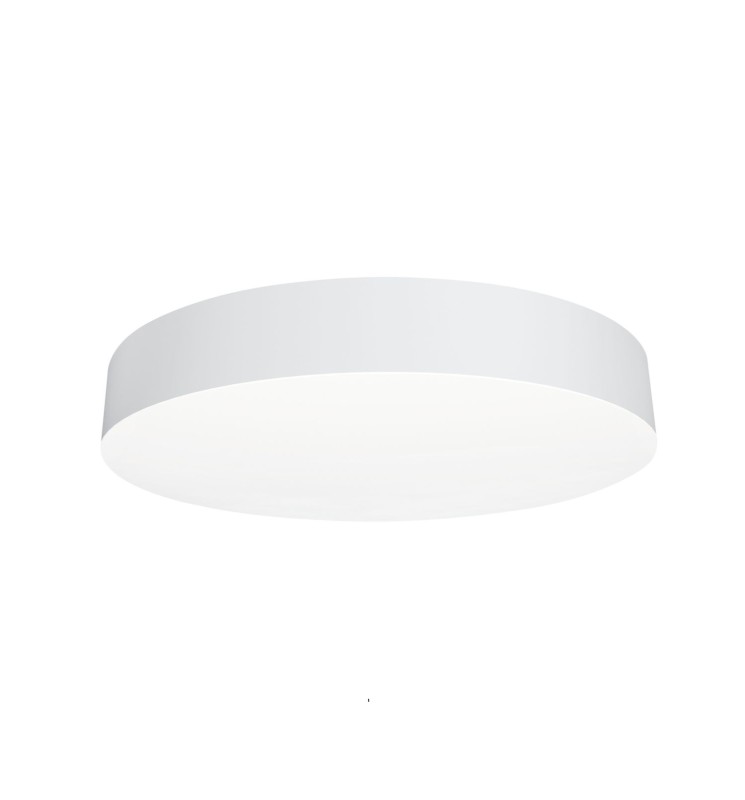

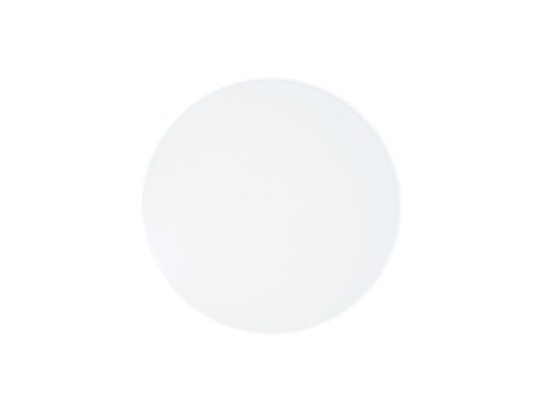

TRIMLESS 410-22W-32W-3CCT-IP54-WHITE
BL000258
Range of 3CCT and multi-power bulkheads, including one with a size >40 cm! From 10W to 32W, thanks to its sleek design and frameless appearance.
It blends perfectly into its environment. Can be wall-mounted or used as a ceiling light.
It blends perfectly into its environment. Can be wall-mounted or used as a ceiling light.
BL000258
Data sheet
- IP
- IP54
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- D
- Warranty (years)
- 3
- Total power (W)
- 22 / 32
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 3300, 3600
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 181
- Height (mm)
- 76
- Weight (kg)
- 0
- Product color
- White
- Use temperature range
- -20°... +40°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 54
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 30 000 h
- Recoverable
- Non concerné
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
