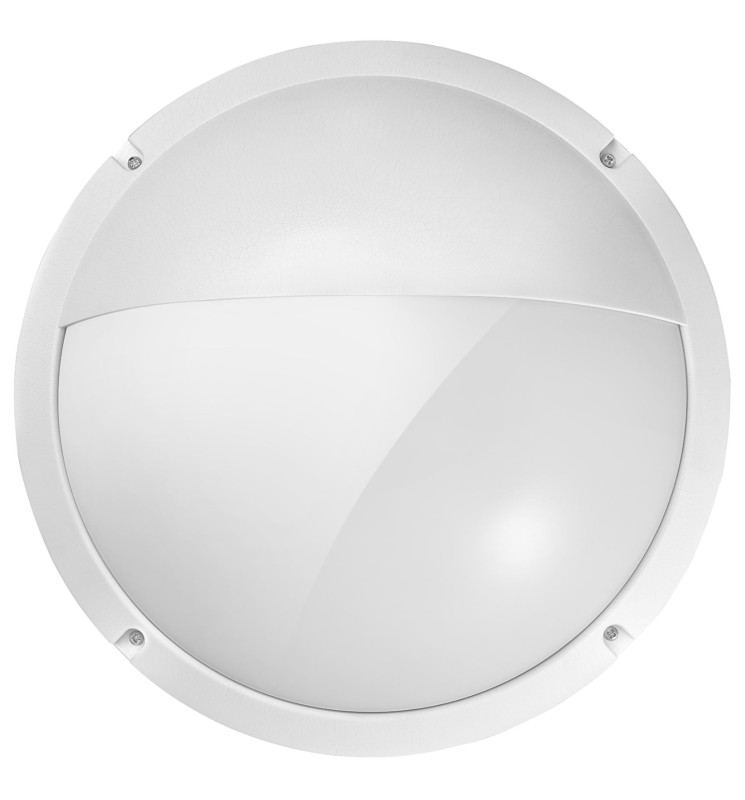

TF099-FOG ASYM SENSOR-25W-IP66-WHITE-4000K-850
BL12256503
Asymmetrical porthole with HF detector ideal for stairways, passageways and building surroundings.
BL12256503
Data sheet
- Yes
- IP
- IP66
- IRC
- >80
- Dimmable
- Non
- IK
- IK10
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 24
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 2400
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 25
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 115
- Weight (kg)
- 1.22
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fast connect
- IP (value)
- 66
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Detector
- Haute fréquence
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
Asymmetrical porthole with HF detector ideal for stairways, passageways and building surroundings.
