TF096-FOG SENSOR-30W-IP66-WHITE-3000K-850
BL12306504
Indoor or outdoor use, IP66, with HF detector. Ideal for communities, garages and stairwells
BL12306504
Data sheet
- Yes
- IP
- IP66
- IRC
- >80
- Dimmable
- Non
- IK
- IK10
- Energy efficiency class
- D
- Energy efficiency class
- F
- Warranty (years)
- 5
- Total power (W)
- 28
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 3500
- Color temperature
- 3000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 93.5
- Weight (kg)
- 0.134
- Product color
- White
- Use temperature range
- -20°... +50°C
- Connection type
- Fast connect
- IP (value)
- 66
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h

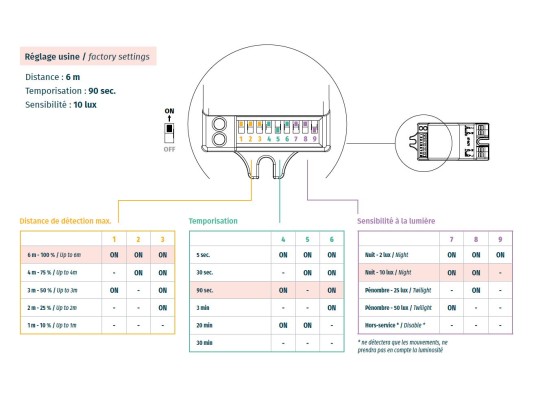

- Detector
- Haute fréquence
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
Indoor or outdoor use, IP66, with HF detector. Ideal for communities, garages and stairwells
