HUBLOT RESI-SQUARE-BLACK-20W-CCT-SENSOR
TR12205402

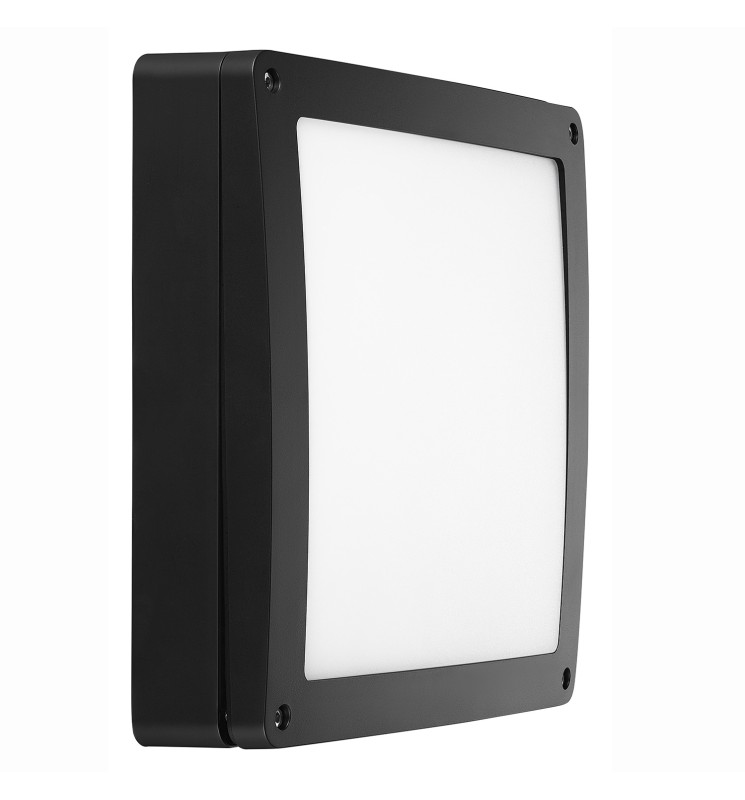

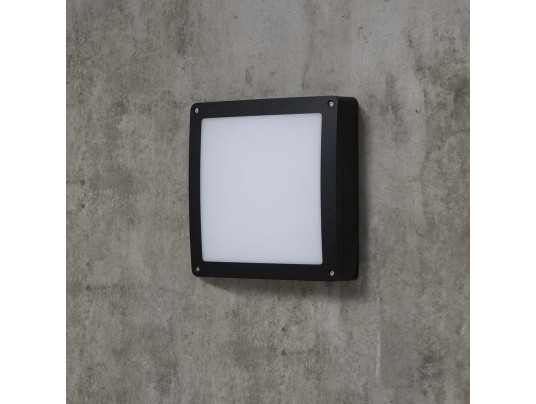

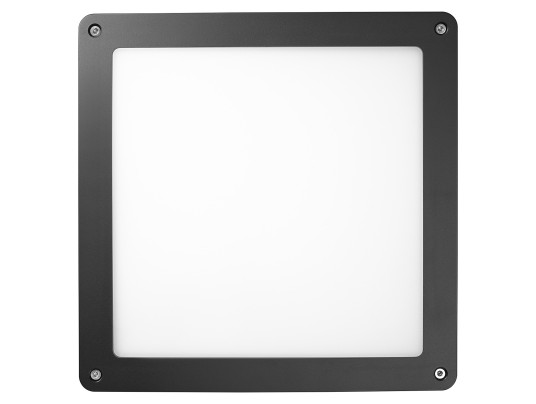

Black square HF detector porthole ideal for collective or individual residential. On wall-mounted or ceiling-mounted balconies, this residential square porthole will give a touch of modernity to all your creations.
TR12205402
Data sheet
- Yes
- IP
- IP65
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 18
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 1700, 1750, 1800
- Color temperature
- 4000K, 3000K, 5500K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 25
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 242
- Width (mm)
- 242
- Height (mm)
- 59
- Weight (kg)
- 0.88
- Product color
- Black
- Use temperature range
- -20°... +50°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 65
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Detector
- Haute fréquence
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
