- Rupture de stock

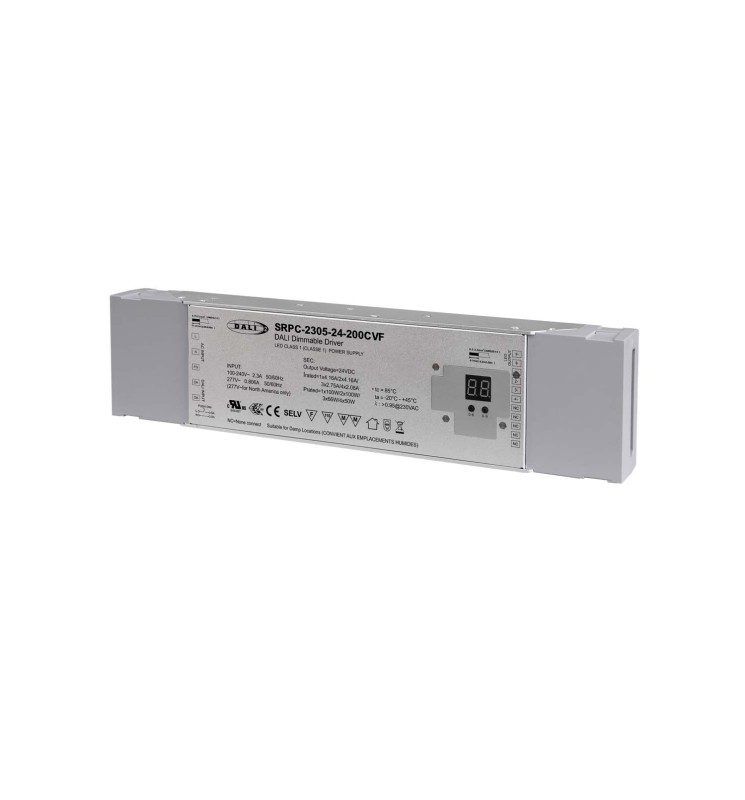

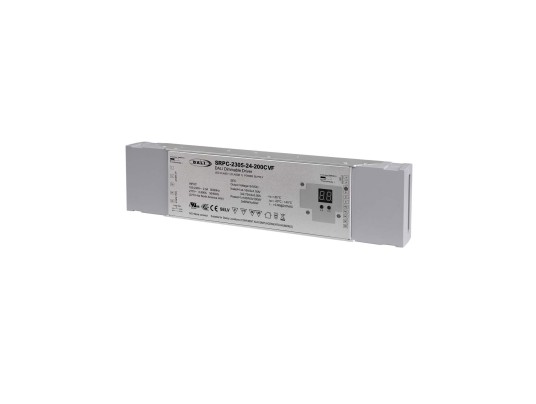

DRIVER TRIAC-DALI-0-10V-PUSH-24V-100W
BL091002408
24Vdc converter for led strip. Dali protocol, dimming in push dim, 1-10V or Triac. Ideal for triac spot assembly with led tape.
BL091002408
Data sheet
- Yes
- IP
- IP20
- Dimmable
- Yes
- IK
- IK04
- Warranty (years)
- 5
- Total power (W)
- 100
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Driver included
- Non
- Tiltable
- Non
- Length (mm)
- 240
- Width (mm)
- 70
- Height (mm)
- 36
- Weight (kg)
- 0.88
- Product color
- Grey
- Use temperature range
- -25°... +45°C
- Connection type
- Connector on the product
- IP (value)
- 20
- Cable length
- 0
- Recoverable
- Non recouvrable
- Dimmable values
- Triac, Dali, push dim, 0-10V
- Network frequency
- 50Hz, 60Hz
24Vdc converter for led strip. Dali protocol, dimming in push dim, 1-10V or Triac. Ideal for triac spot assembly with led tape.
