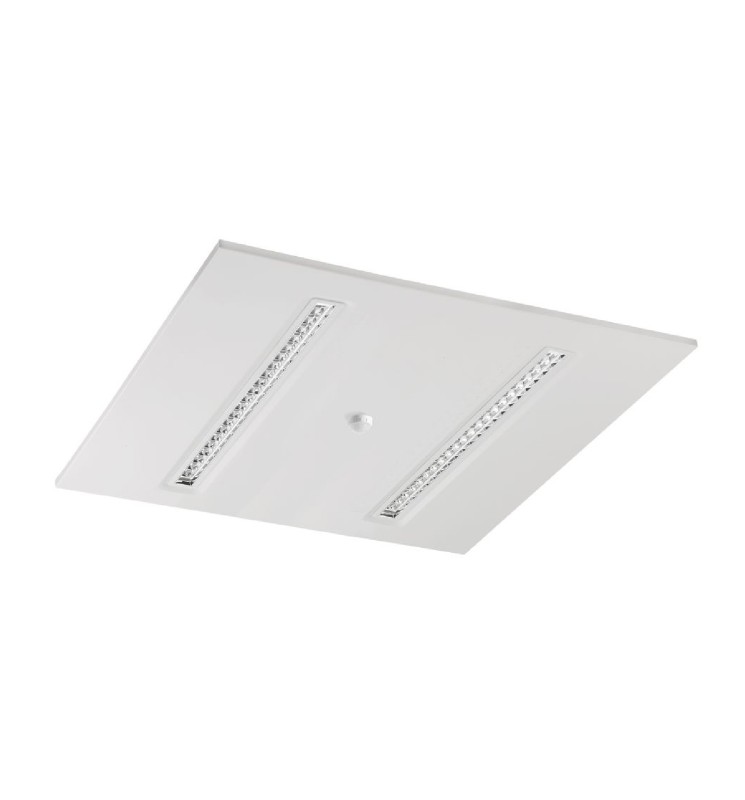

PANEL CONFORT16-DALI-DETECT-HARVEST-MASTER-600x600-24W-IP20-4000K-WHITE
  • PANEL CONFORT16-DALI-DETECT-HARVEST-MASTER-600x600-24W-IP20-4000K-WHITE
  • PANEL CONFORT16-DALI-DETECT-HARVEST-MASTER-600x600-24W-IP20-4000K-WHITE
  • PANEL CONFORT16-DALI-DETECT-HARVEST-MASTER-600x600-24W-IP20-4000K-WHITE

PANEL CONFORT16-DALI-DETECT-HARVEST-MASTER-600x600-24W-IP20-4000K-WHITE

BL000261
600X600 UGR<16 panel, chrome optics. Low consumption and very good visual comfort! EEC eligible.
Ideal for rooms with demanding or intense visual work. 140lm/W, interchangeable LED modules to optimize recycling. Dalí option.
BL000261
BE-LED

Data sheet

Yes
IP
IP20
IRC
>80
Dimmable
Yes
IK
IK06
Energy efficiency class
C
Warranty (years)
5
Total power (W)
24
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
85
Luminous flux (lm)
3400
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 16
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
38
Weight (kg)
0
Product color
White
Use temperature range
-20°... +45°C
Connection type
Box with fast connector (L-PE-N)
IP (value)
20
Body materials
Aluminium, PC
Diffuser materials
PC
Life span duration
L80B10 à 25° : 50 000 h
Cable length
0
Detector
Infra rouge
Recessed depth under BA13 (mm)
40
Recoverable
Insulation material except driver
Dimmable values
Dali, Daylight sensor
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 3
Max. lamp per B10A circuit breaker
10
Max. lamp per B16A circuit breaker
15
Max. lamp per C16A circuit breaker
20
