PANEL-160LMW-21W-3CCT-PRISM-IP20
BL000178

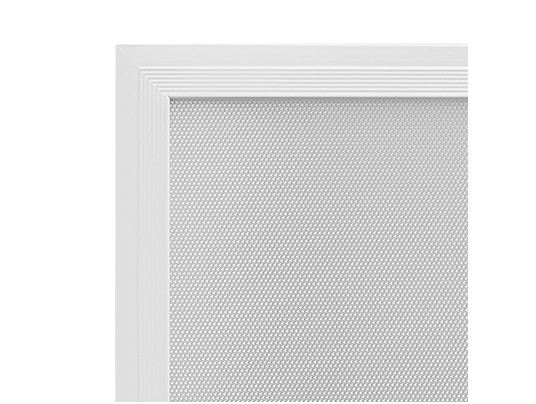

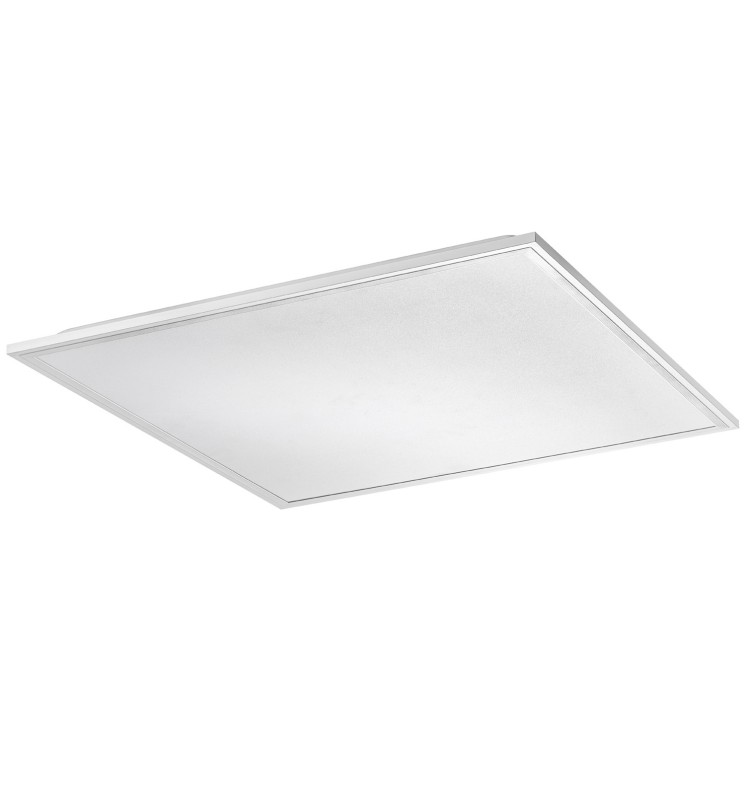

120lm/W micro prismatic led panel. 3 temperature colors to select on the product. 3600 lm in 3000K, 3900 lm in 4000K and 3600 lm in 6000K.
BL000178
Data sheet
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK04
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 21
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 3400, 3350
- Color temperature
- 4000K, 3000K, 6500K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 34
- Weight (kg)
- 0
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Recoverable
- Insulation material except driver
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
120lm/W micro prismatic led panel. 3 temperature colors to select on the product. 3600 lm in 3000K, 3900 lm in 4000K and 3600 lm in 6000K.
