BACKLIT-30W-UGR19-PRISM-4000K-2 PIECES
PL04302001

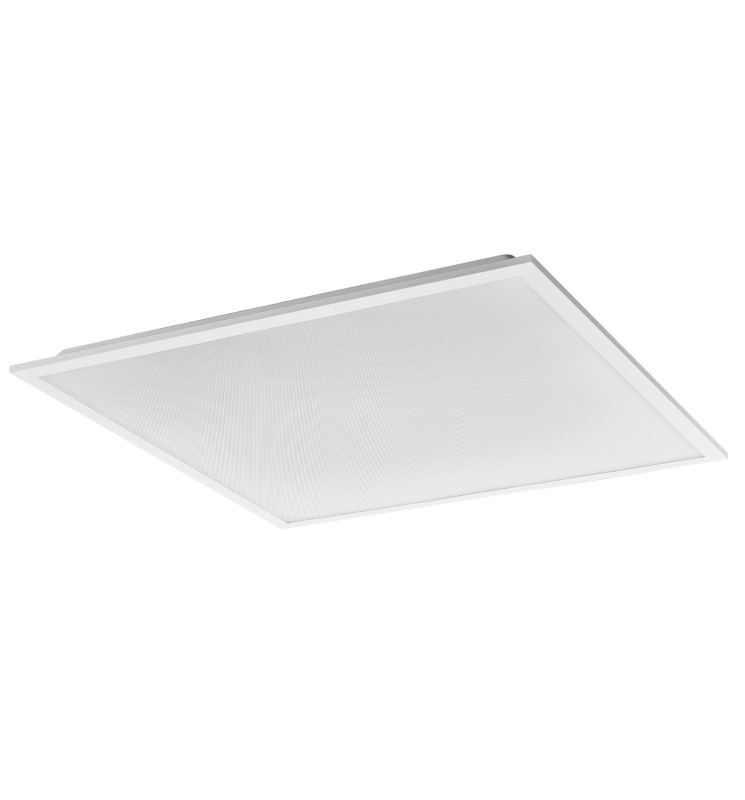

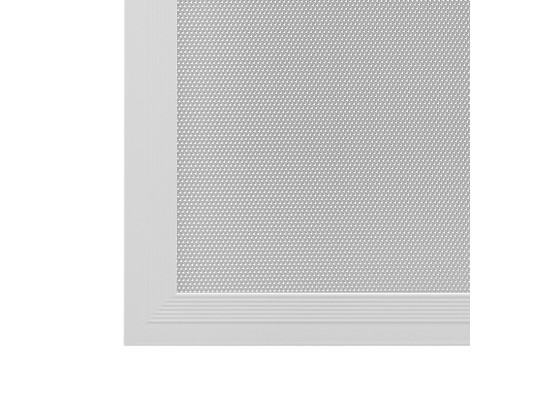

Led panel UGR<19 with prismatic diffuser, safety rope and connection terminal block that can be transplanted without tools, PMMA lens. A package=1 reference which contains 2 pieces
PL04302001
Data sheet
- Yes
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK04
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 30
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 3500
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Non
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 34
- Weight (kg)
- 4.38
- Min. recessed diameter (mm)
- 600
- Max. recessed diameter (mm)
- 600
- Recessed diameter
- 600
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-N)
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Recoverable
- Insulation material except driver
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
