- Rupture de stock

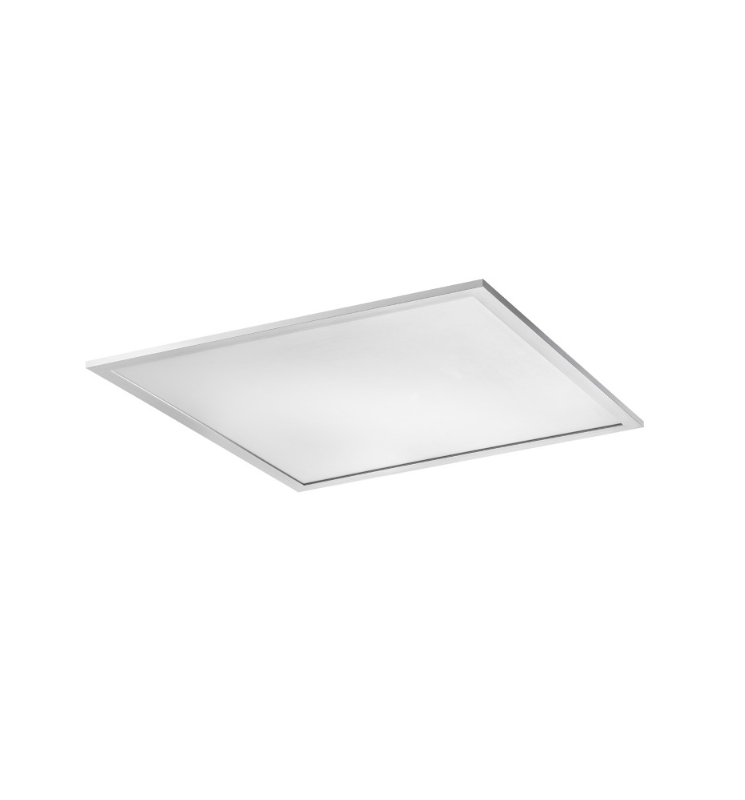

PANEL PURE CLEAN 40W-UGR19-600X600-IP65-ANTIBACTERIAL
TR04402007
LED panel in aluminum and antibacterial polycarbonate. Clean room type device designed for operating theaters but also examination rooms, waiting areas, retirement homes, nurseries...
TR04402007
Data sheet
- Yes
- Yes
- IP
- IP65 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK07
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 40
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 3800
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19*
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 9
- Weight (kg)
- 2.46
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- PC, PS
- Life span duration
- L80 à 25° : 50 000 h
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
