TF105-PANEL V WORKSITE ECOPLUS-600X600-36W-4000K LOOP-IN LOOP-OUT
BL04362005

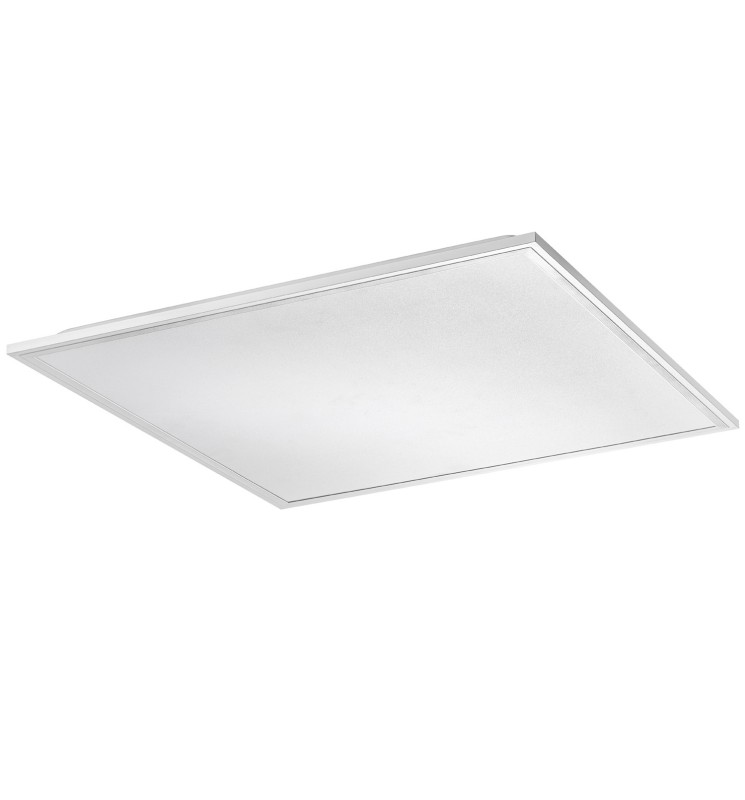

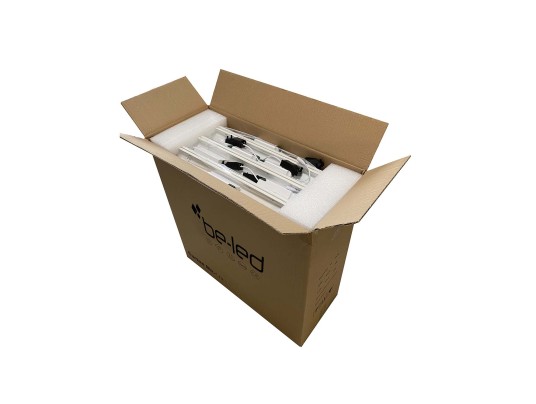

Economical LED panel with connection terminal block and safety cable X6 packaging, designed for your construction sites. With safety rope and connection terminal block that can be plugged in without tools, PMMA lens.
BL04362005
Data sheet
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK04
- Energy efficiency class
- D
- Warranty (years)
- 3
- Total power (W)
- 36
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 120
- Luminous flux (lm)
- 3400
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 34
- Weight (kg)
- 1.68
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-N)
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PMMA
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Insulation material except driver
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
