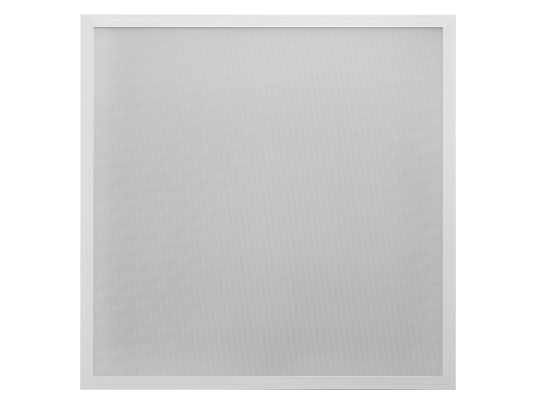

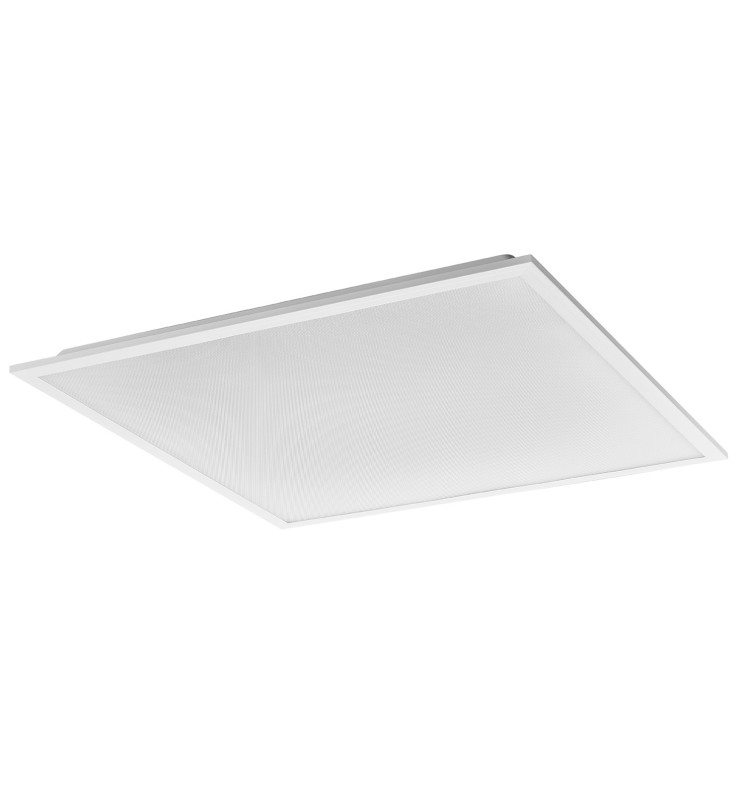

TF110-PANEL ECO UGR19-DALI PUSH DIM-PRISM-600X600-30W-4000K
  • TF110-PANEL ECO UGR19-DALI PUSH DIM-PRISM-600X600-30W-4000K
  • TF110-PANEL ECO UGR19-DALI PUSH DIM-PRISM-600X600-30W-4000K

TF110-PANEL ECO UGR19-DALI PUSH DIM-PRISM-600X600-30W-4000K

BL04302002
Led panel UGR<19 with prismatic diffuser, with safety rope, PMMA lens and DALI Push Dim power supply.
BL04302002
BE-LED

Data sheet

Yes
IP
IP40 (excl. driver)
IRC
>85
Dimmable
Yes
IK
IK04
Energy efficiency class
D
Warranty (years)
5
Total power (W)
30
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
90
Luminous flux (lm)
3400
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
30
Weight (kg)
2.26
Min. recessed diameter (mm)
600
Max. recessed diameter (mm)
600
Recessed diameter
600
Product color
White
Use temperature range
-20°... +45°C
Connection type
Box with fast connector (L-N)
IP (value)
40.
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Cable length
20 cm
Recessed depth under BA13 (mm)
20
Recoverable
Insulation material except driver
Dimmable values
Dali, push dim
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
