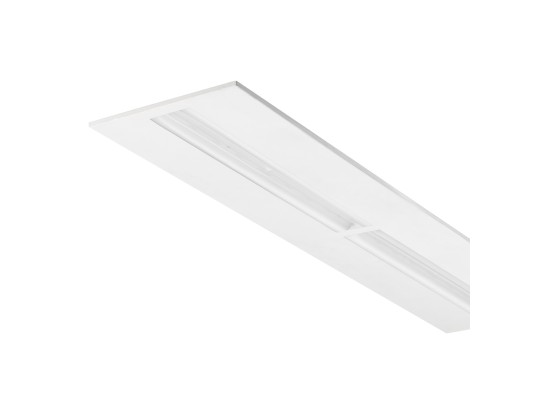

BOARD ASY-1200x300-4K

Data sheet

Yes

IP

IP20

IRC

>80

Dimmable

Non

IK

IK08

Energy efficiency class

D

Warranty (years)

5

Total power (W)

36

Electric class

III, II with power supply

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

60

Luminous flux (lm)

4900

Color temperature

4000K

Safety group (EN62778)

RG0

Unified Glare Rating (UGR)

< 19

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

1195

Width (mm)

295

Height (mm)

22

Weight (kg)

2.86

Product color

White

Use temperature range

-20°... +45°C

Connection type

Box with fast connector (L-N)

IP (value)

20

Body materials

Iron

Life span duration

L80 à 25° : 50 000 h

Recoverable

Isolant rouleau

Network frequency

50Hz

Initial SDCM

SDCM< 4
