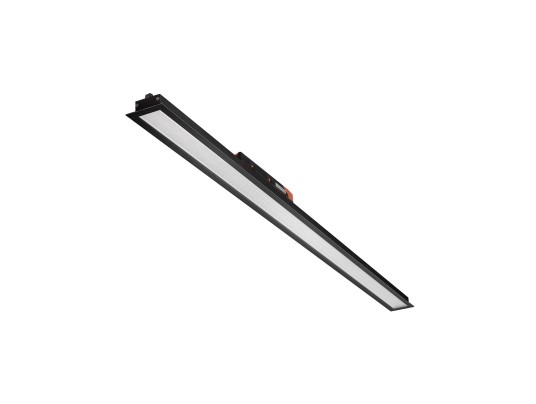

OFFICELINE 120-BLACK-30W-4000K-DALI-RECESSED-OPAL

Data sheet

Yes

IP

IP20

IRC

>85

Dimmable

Yes

IK

IK06

Energy efficiency class

C

Warranty (years)

5

Total power (W)

27

Electric class

III, II with power supply

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

100

Luminous flux (lm)

3400, 3300, 3200

Color temperature

4000K, 3000K, 5700K

Safety group (EN62778)

RG0

Unified Glare Rating (UGR)

< 19

Driver included

Yes

Tiltable

Non

Length (mm)

1144

Width (mm)

63

Height (mm)

25

Weight (kg)

1.3

Connection type

Fil à connecter

IP (value)

20

Life span duration

L80 à 25° : 50 000 h

Cable length

30 cm

Recoverable

Non recouvrable

Dimmable values

Dali

Network frequency

60Hz

Initial SDCM

SDCM< 3

Max. lamp per B10A circuit breaker

8

Max. lamp per B16A circuit breaker

12

Max. lamp per C16A circuit breaker

16
