TF065-PANEL EDGE PRO 1200x300-36W-4000k-UGR19-PRISMATIC
BL04452011

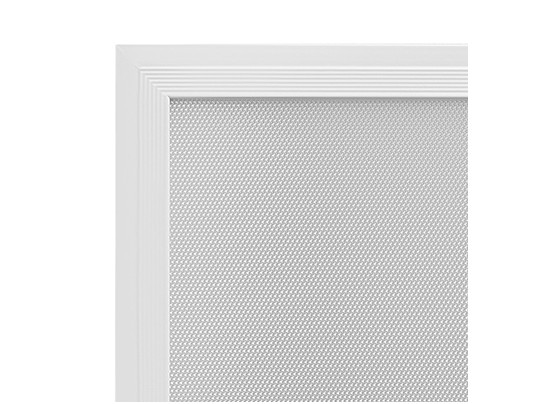

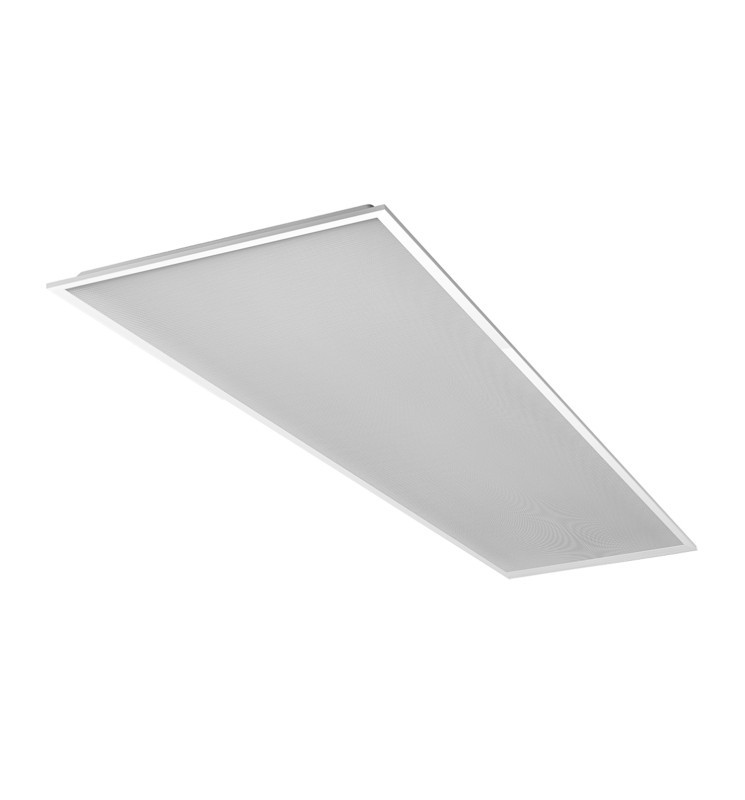

300x1200 "edge" led panel with micro prismatic diffuser. UGR<19, ideal for installations in schools and tertiary environments.
BL04452011
Data sheet
- Yes
- IP
- IP20, IP40 front
- IRC
- >85
- Dimmable
- Non
- IK
- IK07
- Energy efficiency class
- D
- Warranty (years)
- 3
- Total power (W)
- 36
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 3400
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1200
- Width (mm)
- 300
- Height (mm)
- 8
- Weight (kg)
- 2.3
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 40, 20
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
