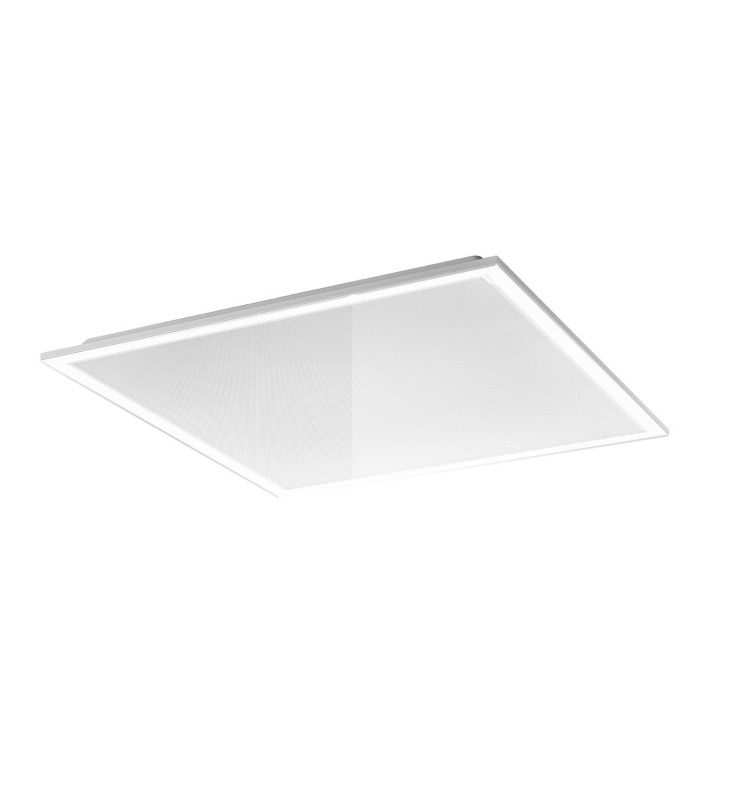

PANEL GLASS DIFFUSER H2O2-600x600-40W-CCT-PRISM
BL04366510
Led panel with prismatic diffuser, safety rope and plug-in connection terminal block without tools, PMMA lens. Product mounted on tempered glass slab with resistance to H2O2 cleaning products on the front and therefore anti-microbial.
BL04366510
Data sheet
- Yes
- Yes
- IP
- IP65 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 30 / 36 / 40
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 4000
- Color temperature
- 3000K, 6000K, 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19*
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 31
- Weight (kg)
- 0
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- Verre trempé
- Life span duration
- L80 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 20
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
