- Rupture de stock

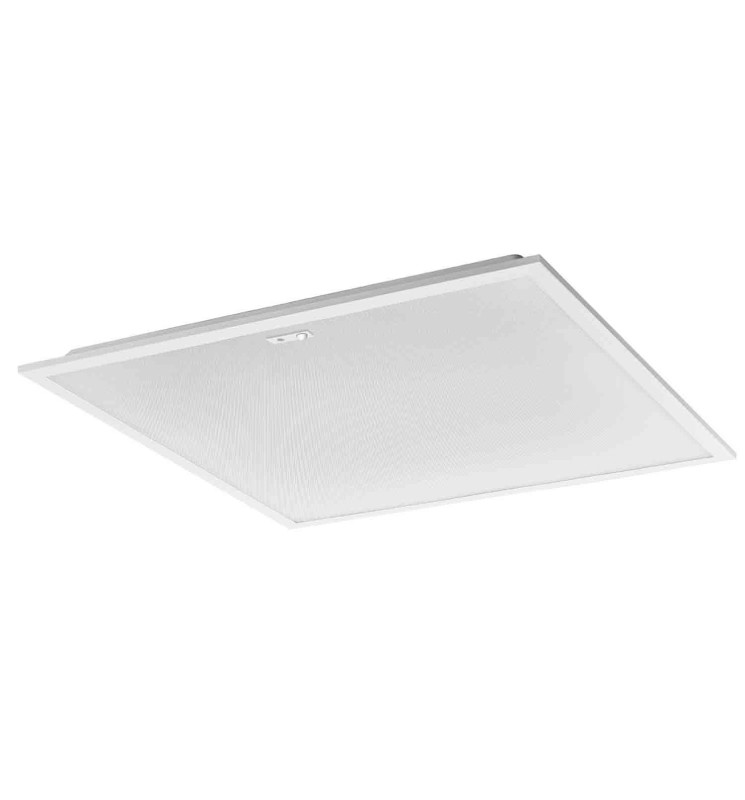

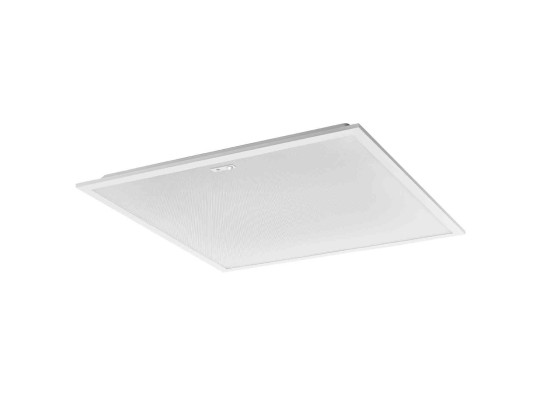

PANEL SMART 600x600-40W-4000K-WHITE-UGR19-SENSOR
BL04362010
Led panel UGR<19 with prismatic diffuser, with safety rope and connection terminal block that can be transplanted without tools, 5-year warranty.

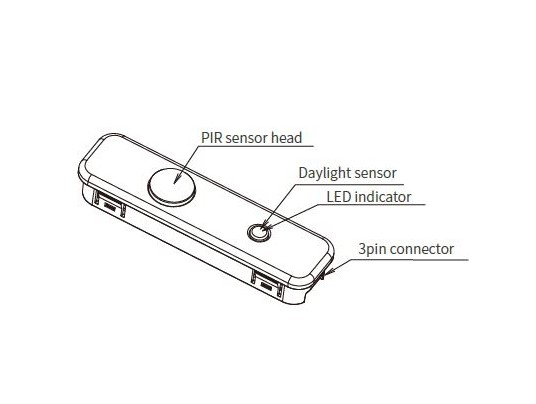

Presence IR detector + programmable brightness with remote control
Presence IR detector + programmable brightness with remote control
BL04362010
Data sheet
- Yes
- IP
- IP20, IP40 front
- IRC
- >80
- Dimmable
- Yes
- IK
- IK04
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 36
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 4700, 4800, 4600
- Color temperature
- 4000K, 3000K, 6000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 32
- Weight (kg)
- 3.2
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 40, 20
- Body materials
- Aluminium, PMMA
- Diffuser materials
- PS
- Life span duration
- L80 à 25° : 50 000 h

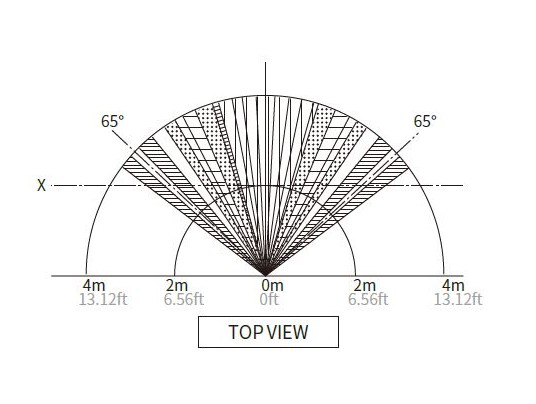

- Detector
- Infra rouge
- Recoverable
- Insulation material except driver
- Dimmable values

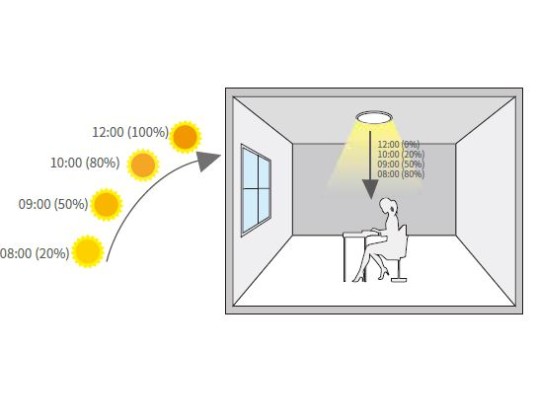

- yes with sensor accessory, Daylight sensor
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
