PANEL WORKSITE UGR19-PRISM-DALI-3000K
BL04302010

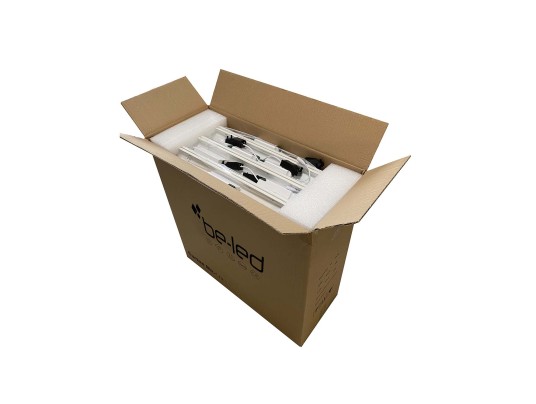

LED panels packed by 6 in site kit. Save time, money and contribute to the environment. Dali version with prismatic diffuser.
BL04302010
Data sheet
- IP
- IP20
- IRC
- >85
- Dimmable
- Yes
- IK
- IK04
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 30
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 3600
- Color temperature
- 3000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 26
- Weight (kg)
- 1.92
- Product color
- White
- Use temperature range
- -20°... +45°C
- IP (value)
- 20
- Body materials
- Iron
- Diffuser materials
- PS
- Life span duration
- L80B10 à 25° : 50 000 h
- Recoverable
- Non recouvrable
- Dimmable values
- Dali
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
LED panels packed by 6 in site kit. Save time, money and contribute to the environment. Dali version with prismatic diffuser.
