- Rupture de stock
ARCHI-5W-IP65-3000K
BL10066501
Architectural, design and compact LED projector. UGR<19. Anti-glare cap included.
It allows the enhancement of architectural elements while being discreet. Its lenses make it possible not to dazzle.
It allows the enhancement of architectural elements while being discreet. Its lenses make it possible not to dazzle.
BL10066501
Data sheet
- IP
- IP65
- IRC
- >80
- Dimmable
- Non
- IK
- IK07
- Energy efficiency class
- F
- Warranty (years)
- 5
- Total power (W)
- 5
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 30
- Luminous flux (lm)
- 400
- Color temperature
- 3000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 12
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Length (mm)
- 75
- Width (mm)
- 75
- Height (mm)
- 55
- Weight (kg)
- 0.84
- Product color
- Dark gray
- Use temperature range
- -20°... +40°C
- Connection type
- Fil à connecter
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- Verre trempé
- Life span duration
- L70 à 25° : 50 000 h
- Cable length
- 100 cm

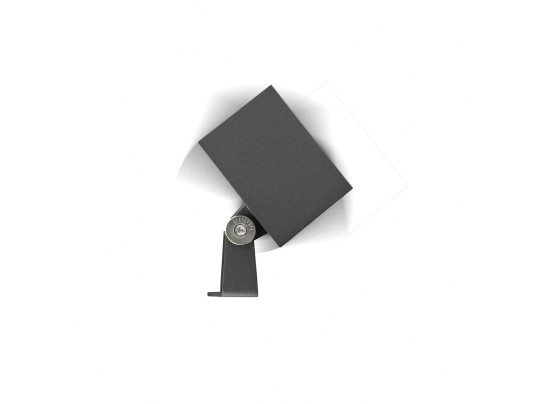

- Tilt angle
- 120
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
- Max. lamp per B10A circuit breaker
- 25
- Max. lamp per B16A circuit breaker
- 30
- Max. lamp per C16A circuit breaker
- 40
- UKCA certified
- Yes
Architectural, design and compact LED projector. UGR<19. Anti-glare cap included.
It allows the enhancement of architectural elements while being discreet. Its lenses make it possible not to dazzle.
It allows the enhancement of architectural elements while being discreet. Its lenses make it possible not to dazzle.
