OFFICELINE 600-BL-23W-4000K
BL000104

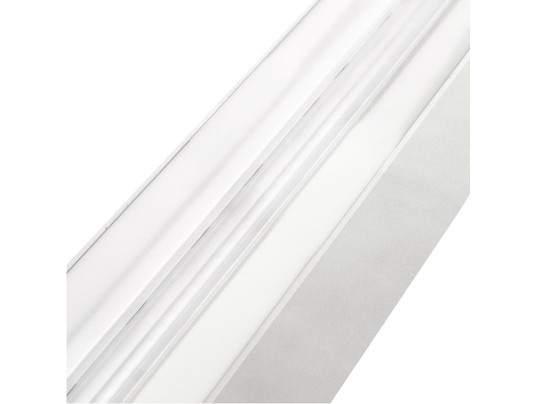

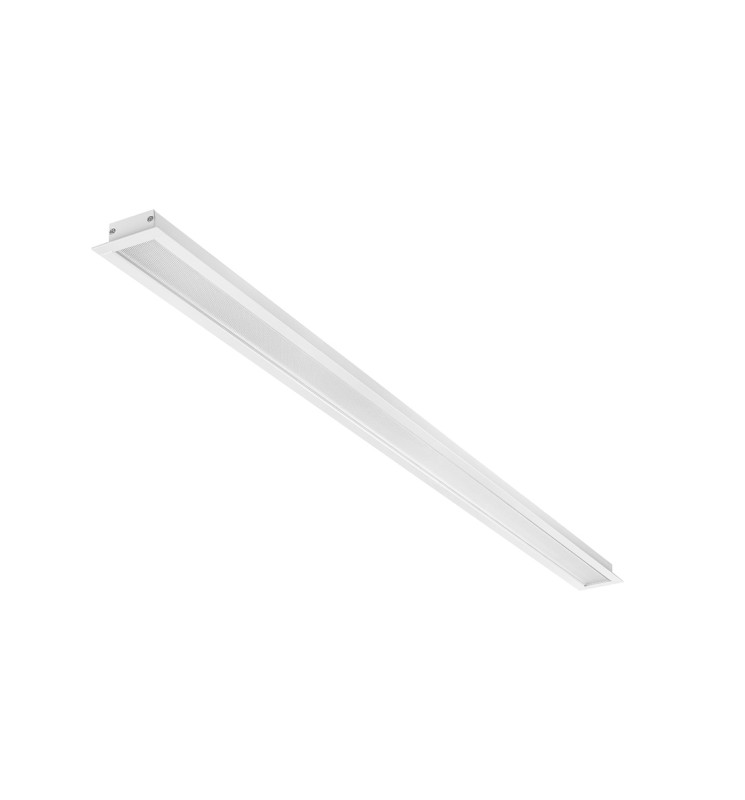

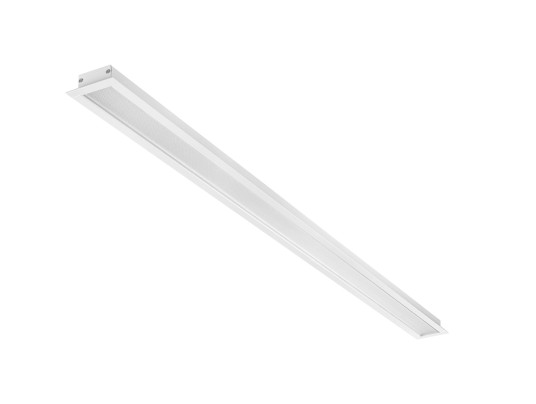

Recessed prismatic diffuser OFFICELINE 600 white in 4000K version ideal for the tertiary sector, lighting of offices, open-spaces etc...
BL000104
Data sheet
- IP
- IP40
- IRC
- >80
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 23
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 2700
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 600
- Width (mm)
- 62.5
- Height (mm)
- 25
- Weight (kg)
- 0
- Min. recessed diameter (mm)
- 45
- Max. recessed diameter (mm)
- 55
- Recessed diameter
- 48, 49, 50, 51, 52, 53, 54, 55, 45, 46, 47
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 40
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 30 000 h
- Cable length
- 30 cm
- Recessed depth under BA13 (mm)
- 85
- Recoverable
- Non recouvrable
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 10
- Max. lamp per B16A circuit breaker
- 15
- Max. lamp per C16A circuit breaker
- 22
Recessed prismatic diffuser OFFICELINE 600 white in 4000K version ideal for the tertiary sector, lighting of offices, open-spaces etc...
