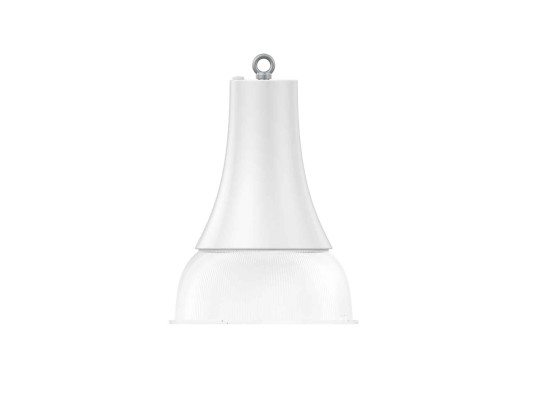

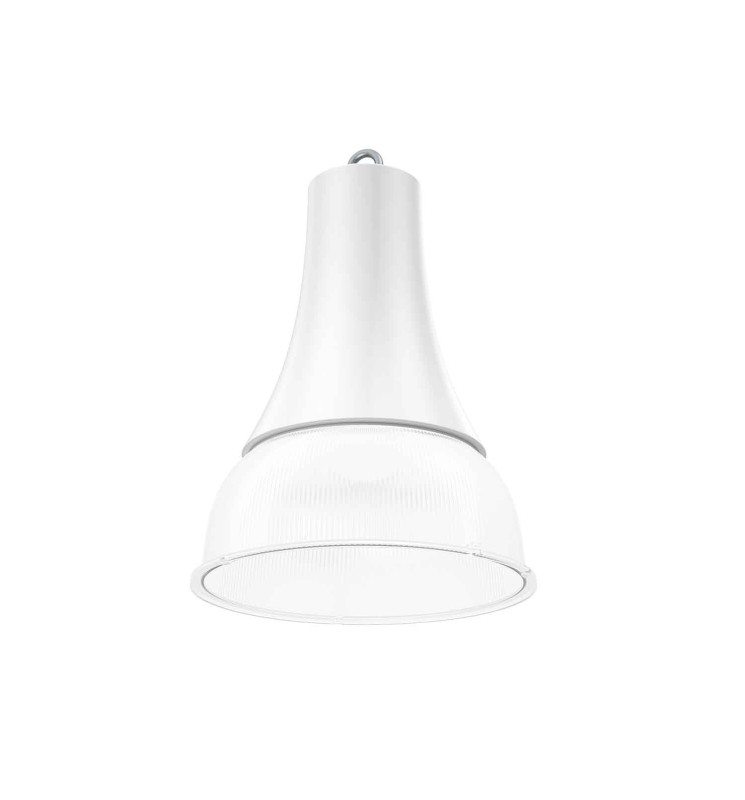

CURVE SHOP-36W-48W-60W-3CCT-IP44
BL000177
Elegant 3CCT and 3-wattage luminaire! All in one, ideal for stores looking to showcase their products.

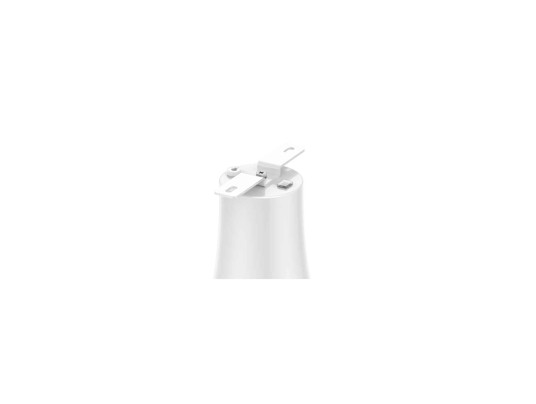

A design that prevents mess! Surface-mounting accessory to be ordered separately.
A design that prevents mess! Surface-mounting accessory to be ordered separately.
BL000177
Data sheet
- Yes
- IP
- IP44
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 36 / 48 / 60
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 8700, 9300, 9000
- Luminous flux (lm)
- 9600
- Color temperature
- 4000K, 3000K, 5000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 278
- Width (mm)
- 278
- Height (mm)
- 398
- Weight (kg)
- 0
- Product color
- White RAL9016
- Use temperature range
- -30°... +50°C
- Connection type
- Fil à connecter
- IP (value)
- 44
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L90 à 25° : 50 000 h, L80 à 25° : 100 000 h, L70 à 25° : 160 000 h
- Cable length
- 300 cm
- Recoverable
- Non concerné
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
