TF135-OFFICELINE 120-BLACK-30W-CCT-UGR19
BL06272001

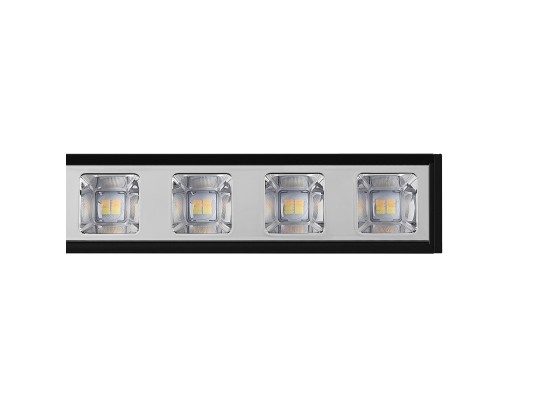

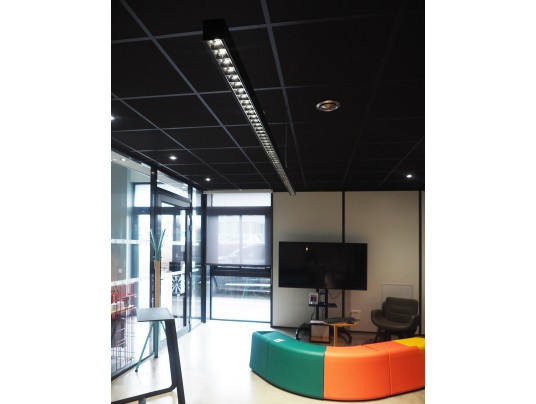

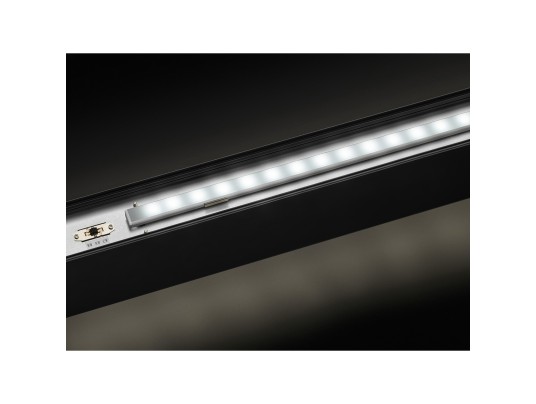

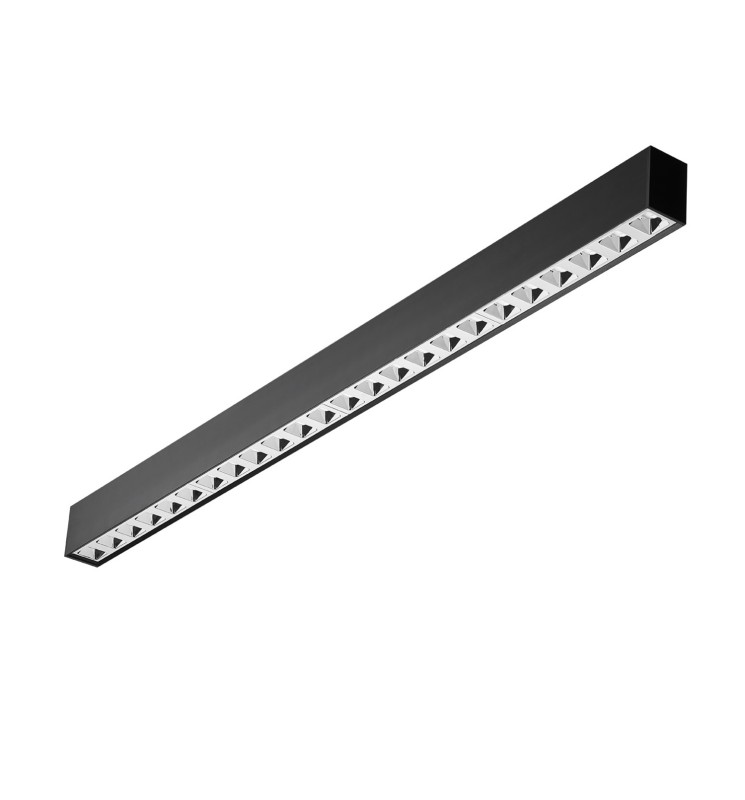

Ceiling LED suspension, Suspended or surface-mounted strip. UGR19 with optional 30% / 70% indirect lighting. Chrome reflector
Low luminance. Possible online accessory
Low luminance. Possible online accessory
BL06272001
Data sheet
- Yes
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 28
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 80
- Luminous flux (lm)
- 4100, 4300
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Non
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Non
- Length (mm)
- 1130
- Width (mm)
- 50
- Height (mm)
- 72
- Weight (kg)
- 1.78
- Product color
- Black
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 130 cm
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 8
- Max. lamp per B16A circuit breaker
- 12
- Max. lamp per C16A circuit breaker
- 16
Ceiling LED suspension, Suspended or surface-mounted strip. UGR19 with optional 30% / 70% indirect lighting. Chrome reflector
Low luminance. Possible online accessory
Low luminance. Possible online accessory
