CYLINDER 600 DIAM70-20W-IP65-3000K-TRANSPARENT
TR11206501

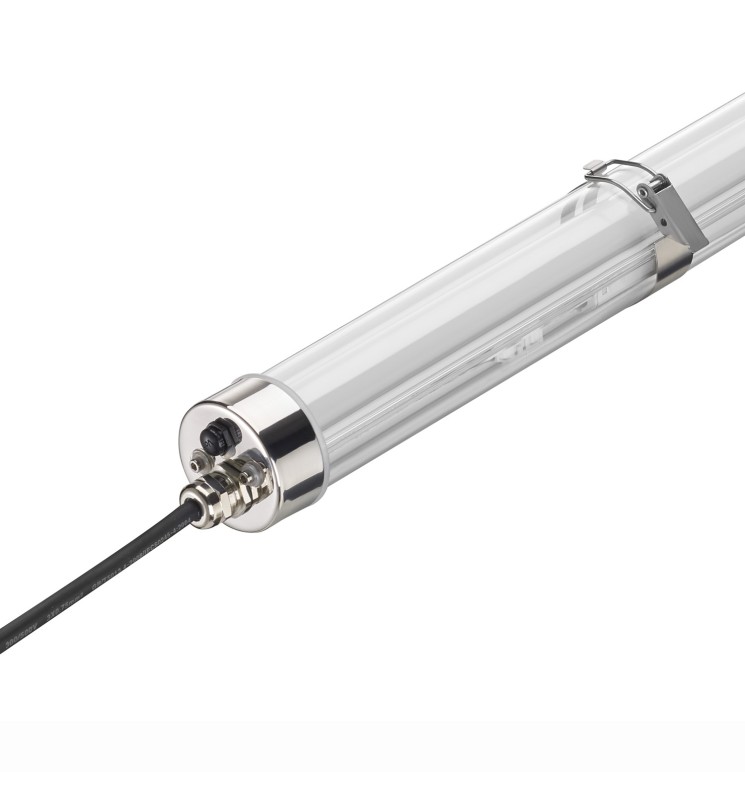

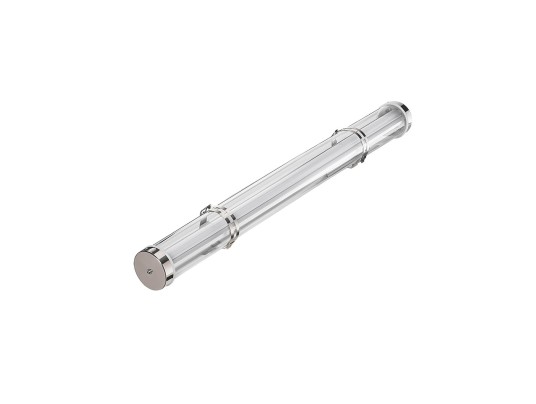

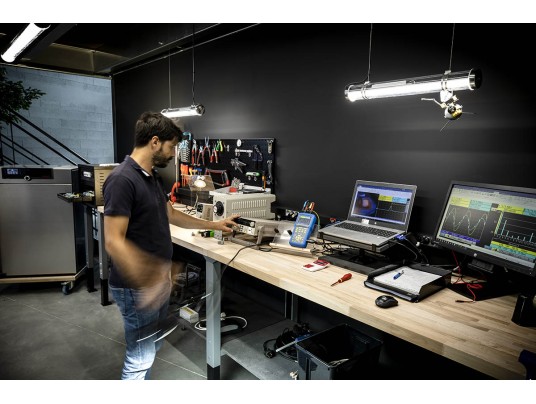

Waterproof tubular LED pendant luminaire in polycarbonate and stainless steel. Suspended or projecting, it is both aesthetic and technical.
Dismountable and multi-power luminaire 12/15/18/20W
Dismountable and multi-power luminaire 12/15/18/20W
TR11206501
Data sheet
- Yes
- IP
- IP65
- IRC
- >80
- Dimmable
- Non
- IK
- IK10
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 20
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 120
- Luminous flux (lm)
- 2730
- Color temperature
- 3000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Length (mm)
- 605
- Weight (kg)
- 1.1
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-N-PE)
- IP (value)
- 65
- Body materials
- STAINLESS STEEL 316L, PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Non recouvrable
- Tilt angle
- 360
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 15
- Max. lamp per B16A circuit breaker
- 20
- Max. lamp per C16A circuit breaker
- 25
