CYLINDER 1200-DIAM70-40W-IP65-4000K-OPAL

TR11506505

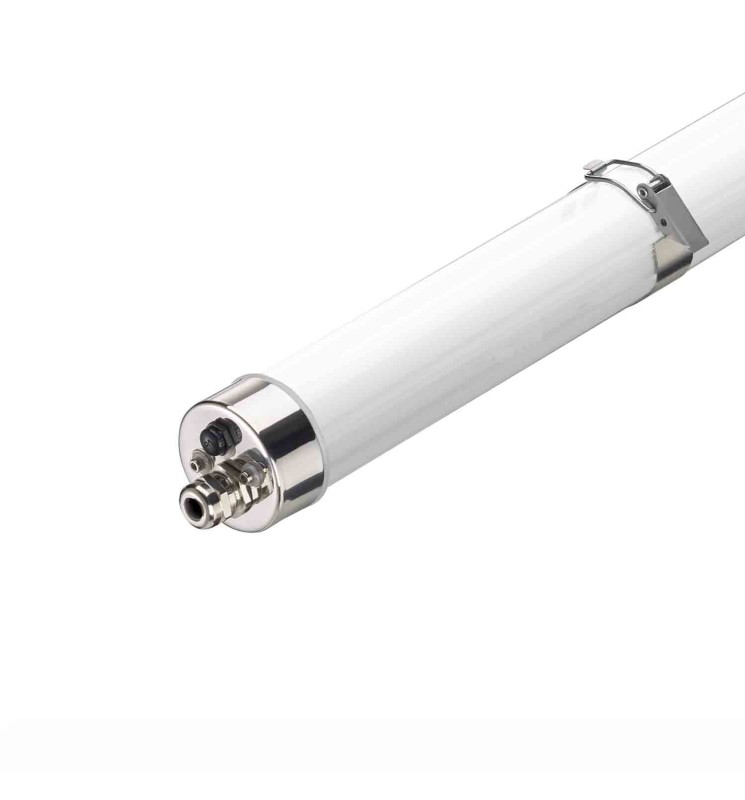

Waterproof LED tubular LED pendant luminaire in polycarbonate and aluminium. Fixing accessories in 316L stainless steel.
Dismountable and multi-power luminaire 20/25/30/36/20W
TR11506505
BE-LED

Data sheet

Yes
Yes
IP
IP65
IRC
>80
Dimmable
Non
IK
IK10
Energy efficiency class
C
Warranty (years)
5
Total power (W)
36
Electric class
I
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
120
Luminous flux (lm)
5600, 5700
Color temperature
4000K, 3000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Yes
Length (mm)
1135
Weight (kg)
1.62
Use temperature range
-25°... +45°C
Connection type
Box with fast connector (L-N-PE)
IP (value)
65
Body materials
PC, STAINLESS STEEL 304
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Recoverable
Non recouvrable
Tilt angle
360
Network frequency
50Hz
Initial SDCM
SDCM< 4
