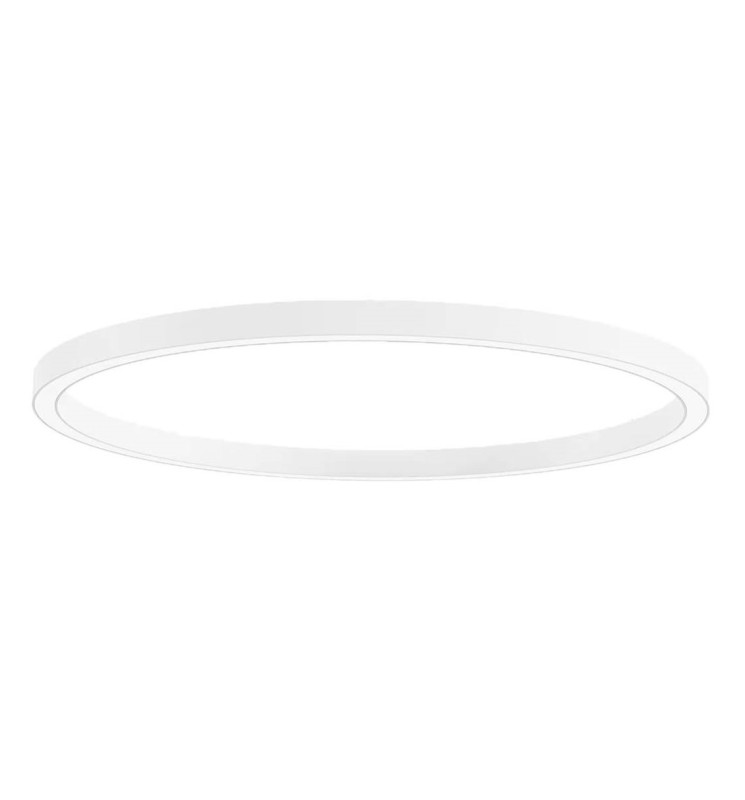

CIRCULAR-40W-3CCT-DIAM600

Data sheet

Yes

IP

IP20

IRC

>80

Dimmable

Yes

IK

IK04

Energy efficiency class

D

Warranty (years)

5

Total power (W)

40

Electric class

III, I with power supply

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

110

Luminous flux (lm)

4000, 4100, 4200

Color temperature

4000K, 3000K, 5700K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Width (mm)

35

Height (mm)

35

Weight (kg)

2.86

Weight (kg)

2

Product color

White

Use temperature range

-20°... +45°C

Connection type

Box DALI with fast connector (L-N-PE-DA1-DA2)

IP (value)

20

Body materials

Aluminium

Diffuser materials

PC

Life span duration

L80B20 à 25° : 50 000 h

Cable length

300 cm

Recoverable

Non concerné

Dimmable values

Dali, push dim

Network frequency

50Hz

Initial SDCM

SDCM< 4
