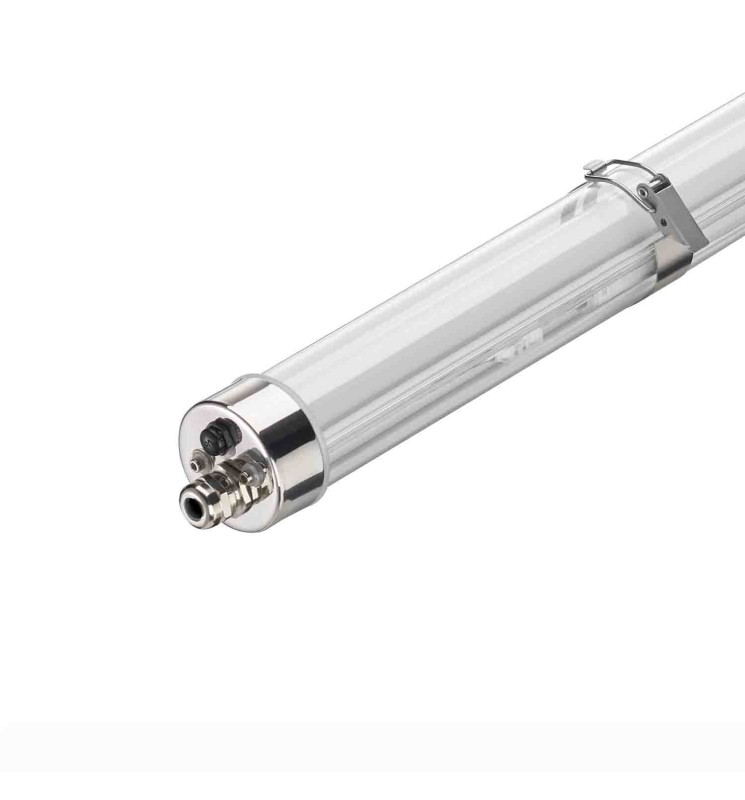

CYLINDER 1500 DIAM70-50W-2CCT

Data sheet

IP

IP65

IRC

>80

Dimmable

Non

IK

IK10

Energy efficiency class

C

Warranty (years)

5

Total power (W)

28 / 36 / 42 / 48

Electric class

I

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

120

Luminous flux (lm)

7650, 7400

Color temperature

4000K, 3000K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Yes

Length (mm)

1400

Weight (kg)

0

Use temperature range

-25°... +45°C

Connection type

Box with fast connector (L-N-PE)

IP (value)

65

Body materials

PC, STAINLESS STEEL 304

Diffuser materials

PC

Life span duration

L70 à 25° : 50 000 h

Recoverable

Non recouvrable

Tilt angle

360

Network frequency

50Hz

Initial SDCM

SDCM< 4

Max. lamp per B10A circuit breaker

11

Max. lamp per B16A circuit breaker

18

Max. lamp per C16A circuit breaker

31
