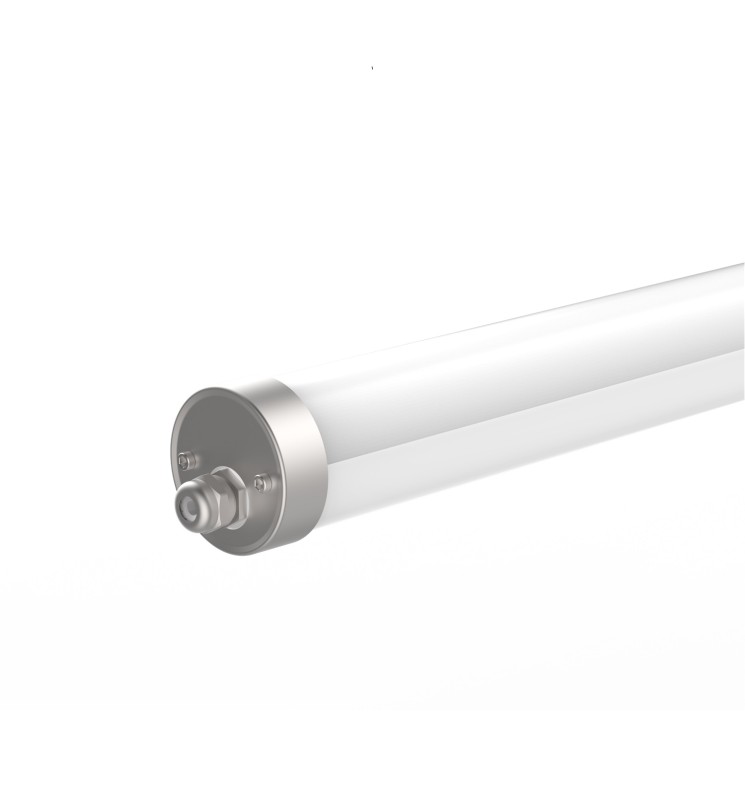

CYLINDER 1200-OPAL-DIAM70-40W-2CCT-DALI

Data sheet

Yes

IP

IP65

IRC

>80

Dimmable

Yes

IK

IK10

Energy efficiency class

C

Warranty (years)

5

Total power (W)

20 / 25 / 30 / 36

Electric class

I

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

120

Luminous flux (lm)

5600, 5700

Color temperature

4000K, 3000K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Yes

Length (mm)

1200

Weight (kg)

0

Use temperature range

-25°... +45°C

Connection type

Fast connect

IP (value)

65

Body materials

STAINLESS STEEL 316L, PC

Diffuser materials

PC

Life span duration

L70 à 25° : 50 000 h

Recoverable

Non recouvrable

Dimmable values

Dali, push dim

Tilt angle

360

Network frequency

50Hz

Initial SDCM

SDCM< 4

Max. lamp per B10A circuit breaker

24

Max. lamp per B16A circuit breaker

38

Max. lamp per C16A circuit breaker

64
