BROAD 3 ALL-30W-3000K-IP20-ASYM BLACK-DIM
TR07302003

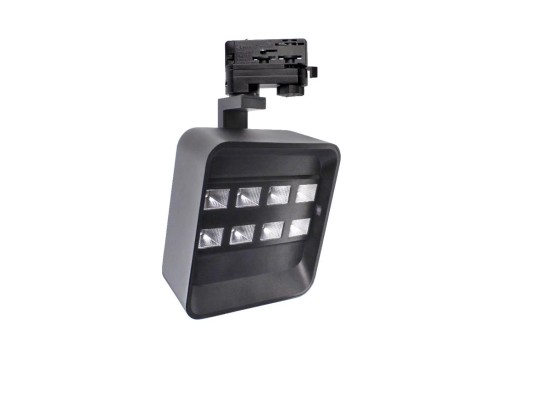

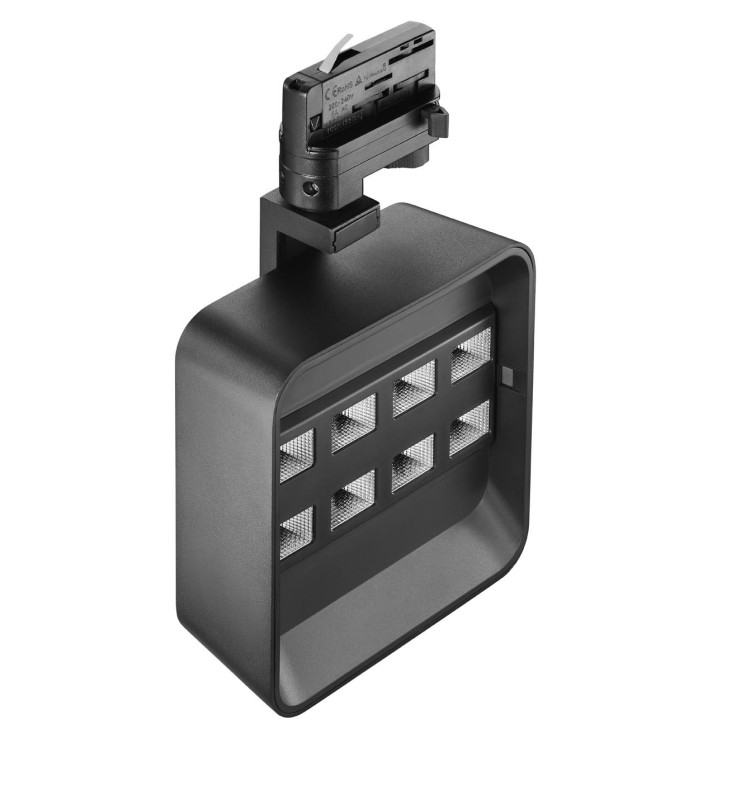

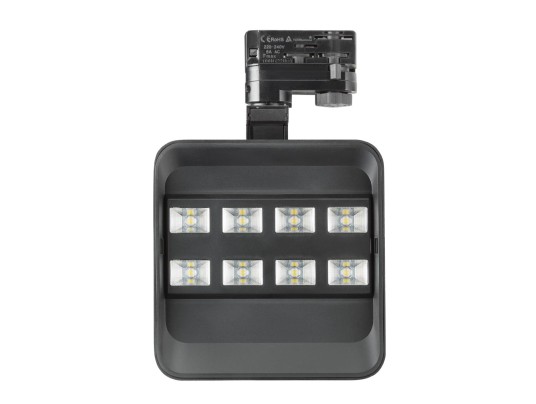

LED spotlight for track 3 asymmetrical lighting in aluminium. Its very extensive lighting (35° X 75°)

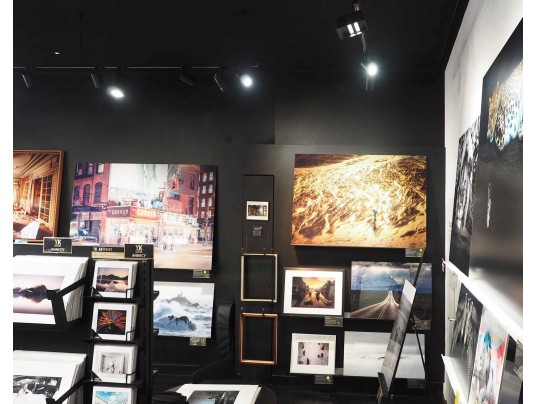

illuminates a surface evenly. Ideal for exhibitions, museums, shops where regular wall lighting is desired.
illuminates a surface evenly. Ideal for exhibitions, museums, shops where regular wall lighting is desired.
TR07302003
Data sheet
- Yes
- IP
- IP20
- IRC
- >90
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 30
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 75
- Luminous flux (lm)
- 2300
- Color temperature
- 3000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Tiltable
- Yes
- Length (mm)
- 60
- Width (mm)
- 166
- Height (mm)
- 172
- Weight (kg)
- 1.2
- Product color
- Black
- Use temperature range
- -20°... +45°C
- Connection type
- Adaptor 4 wires track light
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L70 à 25° : 50 000 h
- Tilt angle
- 350
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
LED spotlight for track 3 asymmetrical lighting in aluminium. Its very extensive lighting (35° X 75°)
illuminates a surface evenly. Ideal for exhibitions, museums, shops where regular wall lighting is desired.
illuminates a surface evenly. Ideal for exhibitions, museums, shops where regular wall lighting is desired.
