RAFALE 3 ALL-7W-3CCT-IP20-BLACK-DIM
  • RAFALE 3 ALL-7W-3CCT-IP20-BLACK-DIM
  • RAFALE 3 ALL-7W-3CCT-IP20-BLACK-DIM
  • RAFALE 3 ALL-7W-3CCT-IP20-BLACK-DIM

RAFALE 3 ALL-7W-3CCT-IP20-BLACK-DIM

TR07072001

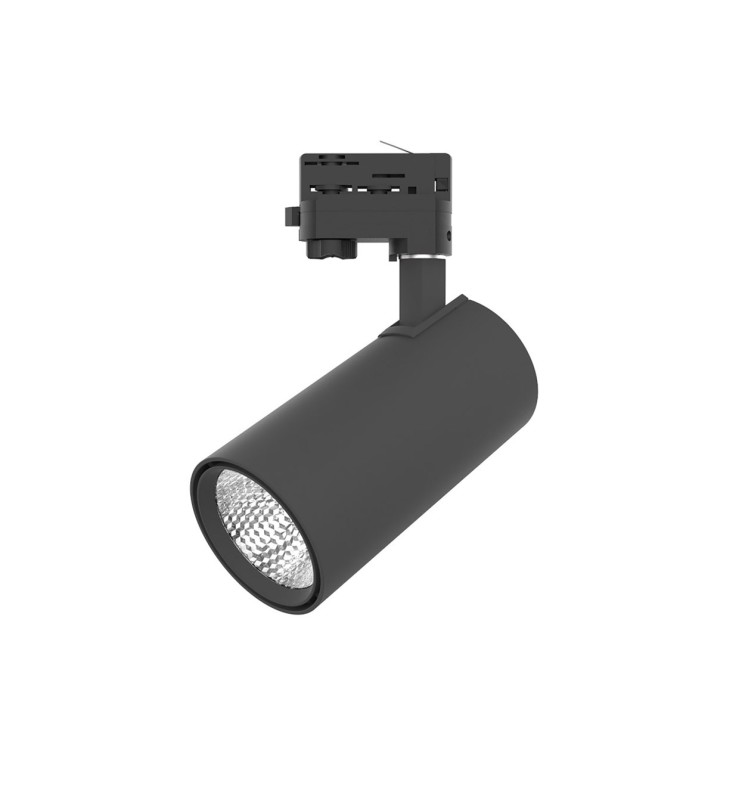

Track-mounted LED spotlight with color temperature change. Aluminum body. Ideal for general or accent lighting.
Naturally anti-glare does not require a honeycomb grid.
TR07072001
BE-LED

Data sheet

Yes
IP
IP20
IRC
>80
Dimmable
Yes
IK
IK08
Energy efficiency class
G
Warranty (years)
3
Total power (W)
7
Electric class
I
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
38
Luminous flux (lm)
650
Color temperature
4000K, 3000K, 5000K
Safety group (EN62778)
RG1
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
COB
Tiltable
Yes
Length (mm)
124
Width (mm)
50
Height (mm)
50
Weight (kg)
0.38
Product color
Black
Use temperature range
-20°... +40°C
Connection type
Adaptor 4 wires track light
IP (value)
20
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Recoverable
Non concerné
Dimmable values
Triac
Tilt angle
350
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
